ADS1293CISQX / NOPB IC AFE 3 CHAN 24BIT 28WQFN 2.7V ~ 5.5V EMMC Memory Chip
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ADS1293CISQX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | ADS1293CISQX/NOPB | Number Of Bits: | 24 |
|---|---|---|---|
| Number Of Channels: | 3 | Voltage - Supply, Analog: | 2.7V ~ 5.5V |
| Mounting Type: | Surface Mount | Package: | Tape & Reel |
Product Description
ADS1293CISQX / NOPB IC AFE 3 CHAN 24BIT 28WQFN 2.7V ~ 5.5V EMMC Memory Chip
IC AFE 3 CHAN 24BIT 28WQFN 3 Channel AFE 24 Bit 28-WQFN (5x5)

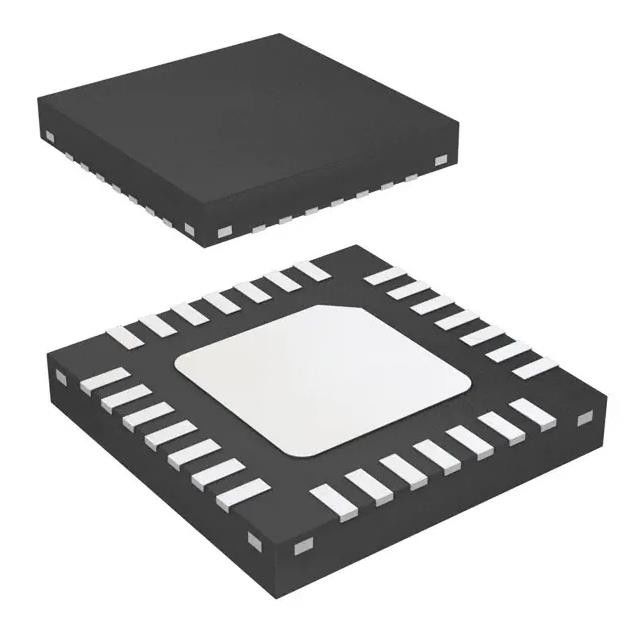

The device is packaged in a 5-mm × 5-mm × 0.8-mm, 28-pin LLP. Operating temperature ranges from –20°C to 85°C.
Features of ADS1293CISQX/NOPB
● Three High-Resolution Digital ECG Channels With Simultaneous Pace Output
● EMI-Hardened Inputs
● Low Power: 0.3 mW/channel
● Input-Referred Noise:7 μVpp (40-Hz Bandwidth)
● Input Bias Current: 175 pA
● Data Rate:Up to 25.6 ksps
● Differential Input Voltage Range: ±400 mV
● Analog Supply Voltage:2.7V to 5.5V
● Digital I/O Supply Voltage:1.65V to 3.6 V
● Right-Leg Drive Amplifier
● AC and DC Lead-Off Detection
Specifications of ADS1293CISQX/NOPB
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
ADS1293CISQX/NOPB
|
|
Number of Bits
|
24
|
|
Number of Channels
|
3
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.5V
|
|
Voltage - Supply, Digital
|
1.65V ~ 3.6V
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
28-WFQFN Exposed Pad
|
|
Supplier Device Package
|
28-WQFN (5x5)
|
|
Base Product Number
|
ADS1293
|
Applications of ADS1293CISQX/NOPB
• Portable 1/2/3/5/6/7/8/12-Lead ECG
• Automated External Defibrillator
• Sports and Fitness (Heart Rate and ECG)
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
