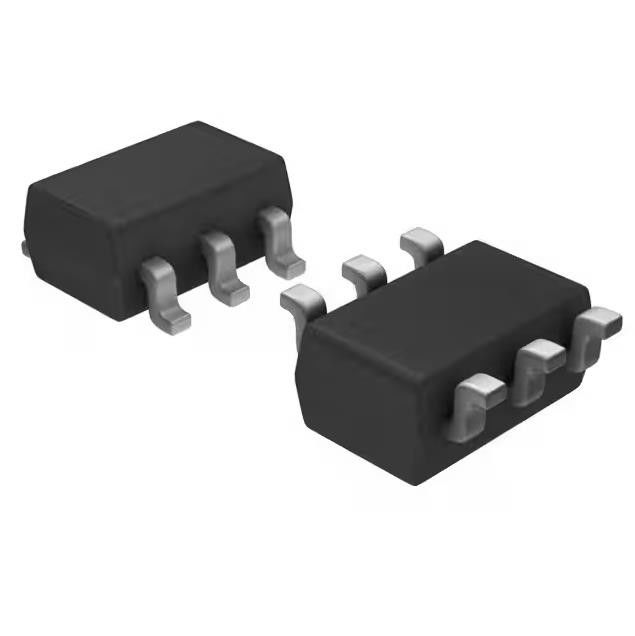

ADS1100A0IDBVR 16 Bit Analog to Digital Converter 1 Input 1 SOT-23-6
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ADS1100A0IDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | ADS1100A0IDBVR | Number Of Bits: | 12 |
|---|---|---|---|
| Sampling Rate (Per Second): | 128 | Number Of Inputs: | 1 |
| Voltage - Supply, Analog: | 2.7V ~ 5.5V | Operating Temperature: | -40°C ~ 85°C |
Product Description
ADC128S102CIMTX / NOPB IC ADC 12BIT SAR 8VSSOP EMMC Memory Chip
16 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta SOT-23-6
The ADS1100 is designed for applications requiring highresolution measurement, where space and power consumption are major considerations. Typical applications include portable instrumentation, industrial process control, and smart transmitters.
Features of ADS1100A0IDBVR
● COMPLETE DATA ACQUISITION SYSTEM IN A
TINY SOT23-6 PACKAGE
● 16-BITS NO MISSING CODES
● INL: 0.0125% of FSR MAX
● CONTINUOUS SELF-CALIBRATION
● SINGLE-CYCLE CONVERSION
● PROGRAMMABLE GAIN AMPLIFIER
GAIN = 1, 2, 4, OR 8
● LOW NOISE: 4µVp-p
● PROGRAMMABLE DATA RATE: 8SPS to 128SPS
● INTERNAL SYSTEM CLOCK
● I2CTM INTERFACE
● POWER SUPPLY: 2.7V to 5.5V
● LOW CURRENT CONSUMPTION: 90µA
● AVAILABLE IN EIGHT DIFFERENT ADDRESSES
Specifications of ADS1100A0IDBVR
|
Product
|
ADS1100A0IDBVR
|
|
Number of Bits
|
16
|
|
Sampling Rate (Per Second)
|
128
|
|
Number of Inputs
|
1
|
|
Input Type
|
Differential, Single Ended
|
|
Data Interface
|
I²C
|
|
Configuration
|
PGA-ADC
|
|
Ratio - S/H:ADC
|
-
|
|
Number of A/D Converters
|
1
|
|
Architecture
|
Sigma-Delta
|
|
Reference Type
|
Supply
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.5V
|
|
Voltage - Supply, Digital
|
2.7V ~ 5.5V
|
|
Features
|
PGA
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Package / Case
|
SOT-23-6
|
|
Supplier Device Package
|
SOT-23-6
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
ADS1100
|
Applications of ADS1100A0IDBVR
● PORTABLE INSTRUMENTATION
● INDUSTRIAL PROCESS CONTROL
● SMART TRANSMITTERS
● CONSUMER GOODS
● FACTORY AUTOMATION
● TEMPERATURE MEASUREMENT
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
