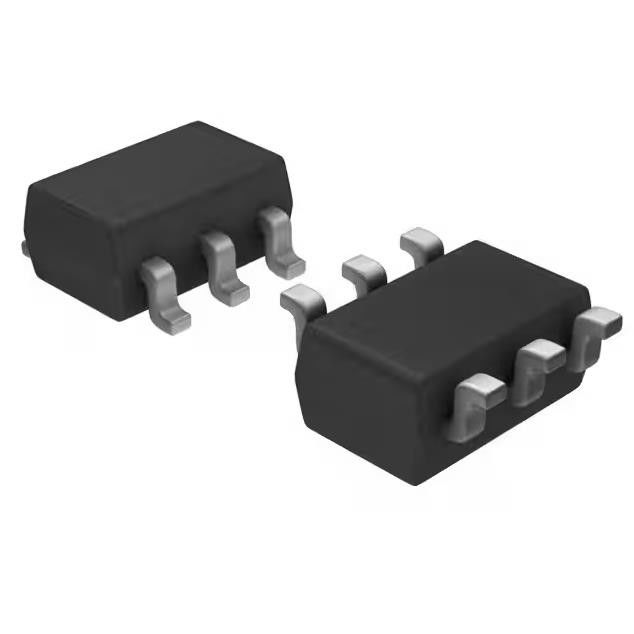

ADS1000A1IDBVR IC ADC 12BIT SIGMA-DELTA SOT23-6 EMMC Memory Chip
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ADS1000A1IDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | ADS1000A1IDBVR | Number Of Bits: | 12 |
|---|---|---|---|
| Sampling Rate (Per Second): | 128 | Number Of Inputs: | 1 |
| Supplier Device Package: | SOT-23-6 | Operating Temperature: | -40°C ~ 125°C |
Product Description
ADS1000A1IDBVR IC ADC 12BIT SIGMA-DELTA SOT23-6 EMMC Memory Chip
12 Bit Analog to Digital Converter 2 Input 1 SAR 8-VSSOP
The ADS1000 is designed for applications where space and power consumption are major considerations.
Typical applications include portable instrumentation, consumer goods, and voltage monitoring.
Features of ADS1000A1IDBVR
• Complete 12-Bit Data Acquisition System in a Tiny SOT-23 Package
• Low Current Consumption: Only 90μA inputs
• Integral Nonlinearity: 1LSB Max
• Single-Cycle Conversion
• Programmable Gain Amplifier
Gain = 1, 2, 4, or 8
• 128SPS Data Rate
• I2 C Interface with Two Available Addresses
• Power Supply: 2.7V to 5.5V
• Pin- and Software-Compatible with 16-Bit ADS1100
Specifications of ADS1000A1IDBVR
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
ADS1000A1IDBVR
|
|
Number of Bits
|
12
|
|
Sampling Rate (Per Second)
|
128
|
|
Number of Inputs
|
1
|
|
Input Type
|
Differential, Single Ended
|
|
Data Interface
|
I²C
|
|
Configuration
|
PGA-ADC
|
|
Ratio - S/H:ADC
|
-
|
|
Number of A/D Converters
|
1
|
|
Architecture
|
Sigma-Delta
|
|
Reference Type
|
Supply
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.5V
|
|
Voltage - Supply, Digital
|
2.7V ~ 5.5V
|
|
Features
|
PGA, Selectable Address
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Package / Case
|
SOT-23-6
|
|
Supplier Device Package
|
SOT-23-6
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
ADS1000
|
Applications of ADS1000A1IDBVR
• Voltage Monitors
• Battery Management
• Industrial Process Control
• Consumer Goods
• Temperature Measurement
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
