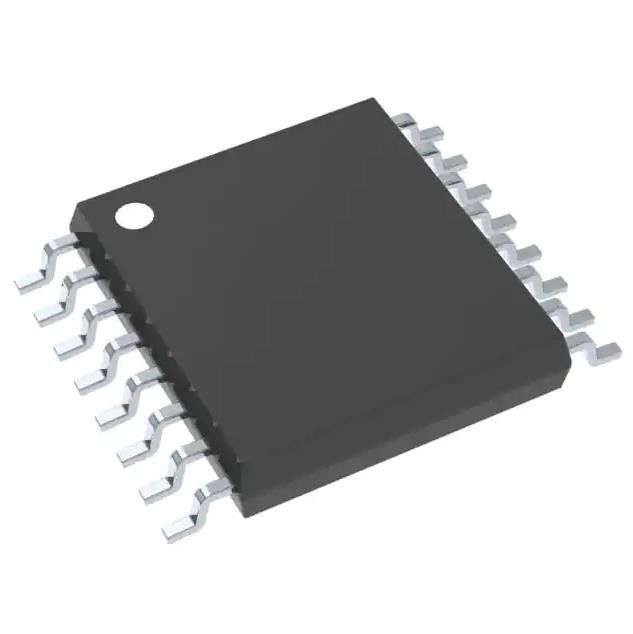

ADC128S102CIMTX / NOPB IC ADC 12BIT SAR 8VSSOP EMMC Memory Chip
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ADC128S102CIMTX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | ADC128S102CIMTX/NOPB | Number Of Bits: | 12 |
|---|---|---|---|
| Sampling Rate (Per Second): | 200k | Number Of Inputs: | 2 |
| Supplier Device Package: | 8-VSSOP | Operating Temperature: | -40°C ~ 85°C |
Product Description
ADC128S102CIMTX / NOPB IC ADC 12BIT SAR 8VSSOP EMMC Memory Chip
12 Bit Analog to Digital Converter 2 Input 1 SAR 8-VSSOP
The ADC122S021 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 2.2 mW and 7.9 mW, respectively. The power-down feature reduces the power consumption to just 0.14 µW using a +3V supply, or 0.32 µW using a +5V supply.
Features of ADC128S102CIMTX/NOPB
• DNL +0.4 / −0.2 LSB (typ)
• INL ± 0.35 LSB (typ)
• SNR 72.0 dB (typ)
• Power Consumption 2.2 mW (typ)
– 5V Supply 7.9 mW (typ)
Specifications of ADC128S102CIMTX/NOPB
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
ADC128S102CIMTX/NOPB
|
|
Number of Bits
|
12
|
|
Sampling Rate (Per Second)
|
200k
|
|
Number of Inputs
|
2
|
|
Input Type
|
Single Ended
|
|
Data Interface
|
SPI, DSP
|
|
Configuration
|
MUX-S/H-ADC
|
|
Ratio - S/H:ADC
|
1:1
|
|
Number of A/D Converters
|
1
|
|
Architecture
|
SAR
|
|
Reference Type
|
Supply
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.25V
|
|
Voltage - Supply, Digital
|
2.7V ~ 5.25V
|
|
Features
|
-
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Package / Case
|
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
|
|
Supplier Device Package
|
8-VSSOP
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
ADC122S021
|
Applications of ADC128S102CIMTX/NOPB
• Portable Systems
• Remote Data Acquisition
• Instrumentation and Control Systems
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
