SMBJ20A-E3 / 5B Tantalum Chip Capacitor 32.4V Clamp 18.5A Ipp Tvs Diode
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SMBJ20A-E3 5B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | SMBJ20A-E3 5B | Unidirectional Channels: | 2 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 20v | Voltage - Breakdown (Min): | 22.2v |
| Voltage - Clamping (Max) @ Ipp: | 32.4V | Power - Peak Pulse: | 600W |
| Operating Temperature: | -55°C ~ 150°C (TJ) | Type: | Zener |
Product Description

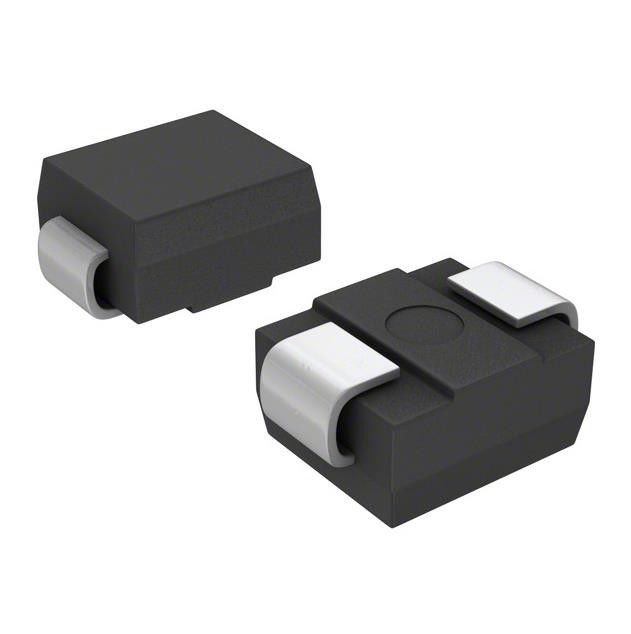

SMBJ20A-E3 / 5B Tantalum Chip Capacitor 32.4V Clamp 18.5A Ipp Tvs Diode
32.4V Clamp 18.5A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
Features of SMBJ20A-E3 5B
• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• Available in unidirectional and bidirectional
• 600 W peak pulse power capability with a
10/1000 μs waveform, repetitive rate
(duty cycle): 0.01 %
• Excellent clamping capability
• Very fast response time
• Low incremental surge resistance
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
Specifications of SMBJ20A-E3 5B
|
Product
|
SMBJ20A-E3 5B
|
|
Type
|
Zener
|
|
Unidirectional Channels
|
1
|
|
Voltage - Reverse Standoff (Typ)
|
20V
|
|
Voltage - Breakdown (Min)
|
22.2V
|
|
Voltage - Clamping (Max) @ Ipp
|
32.4V
|
|
Current - Peak Pulse (10/1000µs)
|
18.5A
|
|
Power - Peak Pulse
|
600W
|
|
Power Line Protection
|
No
|
|
Applications
|
General Purpose
|
|
Capacitance @ Frequency
|
-
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AA, SMB
|
|
Supplier Device Package
|
DO-214AA (SMBJ)
|
|
Base Product Number
|
SMBJ20
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
Applications of SMBJ20A-E3 5B
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting
on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
