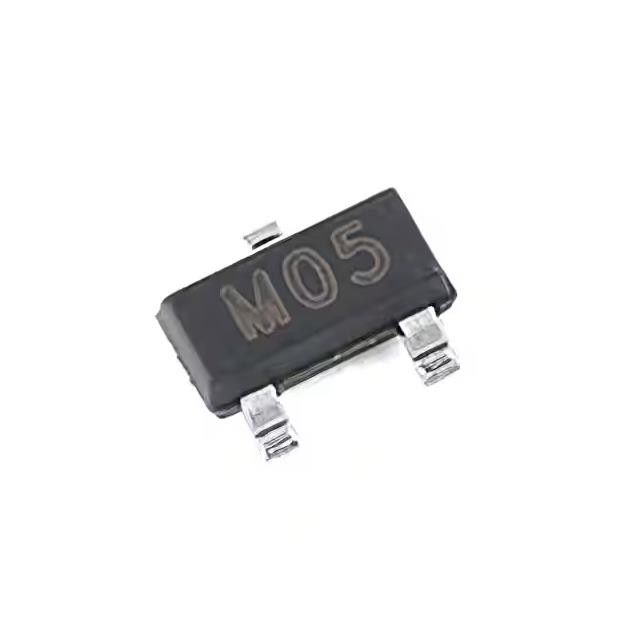

SM05.TCT IC 9.8V Clamp 17A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SM05.TCT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | SM05.TCT | Unidirectional Channels: | 2 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 5V (Max) | Voltage - Breakdown (Min): | 6V |
| Voltage - Clamping (Max) @ Ipp: | 9.8V | Power - Peak Pulse: | 300W |
| Capacitance @ Frequency: | 400pF @ 1MHz | Operating Temperature: | -55°C ~ 125°C (TJ) |
Product Description
SM05.TCT IC 9.8V Clamp 17A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
Low capacitance unidirectional quadruple ElectroStatic Discharge (ESD) protection diode
arrays in small Surface-Mounted Device (SMD) plastic packages designed to protect up to
four signal lines from the damage caused by ESD and other transients.
Features of SM05.TCT
300 watts peak pulse power(t.=8/20us)
Transient protection for data & power lines to
* IEC 61000-4-2(ESD)±15kV(air),±8kV(contact)
* IEC 61000-4-4(EFT)40A(5/50ns)
* IEC 61000-4-5(Lightning)12A(8/20us)
Protects one bidirectional line or two unidirectional lines
Working Voltages: 5V, 12V,15V,24V and 36V
Low clamping voltage
Solid-state silicon avalanche technology
JEDEC SOT-23 package
Molding compound flammability rating: UL 94V-0
Marking:Marking Code
Packaging:Tape and Reel
Lead Finish: Matte tin
RoHS/WEEE Compliant
Specifications of SM05.TCT
|
Product Status
|
SM05.TCT
|
|
Type
|
Zener
|
|
Unidirectional Channels
|
2
|
|
Voltage - Reverse Standoff (Typ)
|
5V (Max)
|
|
Voltage - Breakdown (Min)
|
6V
|
|
Voltage - Clamping (Max) @ Ipp
|
9.8V
|
|
Current - Peak Pulse (10/1000µs)
|
17A (8/20µs)
|
|
Power - Peak Pulse
|
300W
|
|
Power Line Protection
|
No
|
|
Applications
|
General Purpose
|
|
Capacitance @ Frequency
|
400pF @ 1MHz
|
|
Operating Temperature
|
-55°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23-3
|
|
Base Product Number
|
SM05
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
Applications of SM05.TCT
Cellular Handsets and Accessories
Portable Electronics
Industrial Controls
Set-Top Box
Servers, Notebook, and Desktop PC
