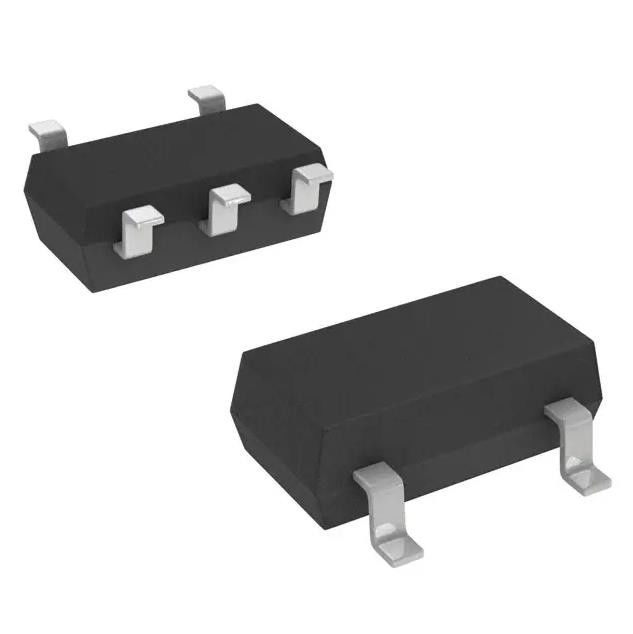

PESD3V3L4UG 115 12V Clamp 3A (8/20µs) Tantalum Chip Capacitor
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | PESD3V3L4UG,115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | PESD3V3L4UG,115 | Unidirectional Channels: | 4 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 3.3V (Max) | Voltage - Breakdown (Min): | 5.32V |
| Voltage - Clamping (Max) @ Ipp: | 12V | Power - Peak Pulse: | 30W |
| Capacitance @ Frequency: | 22pF @ 1MHz | Operating Temperature: | -65°C ~ 150°C (TA) |
Product Description
PESD3V3L4UG 115 12V Clamp 3A (8/20µs) Tantalum Chip Capacitor
Low capacitance unidirectional quadruple ElectroStatic Discharge (ESD) protection diode
arrays in small Surface-Mounted Device (SMD) plastic packages designed to protect up to
four signal lines from the damage caused by ESD and other transients.
Features of PESD3V3L4UG,115
Guard Ring Die Construction for Transient Protection
Very Low Forward Voltage Drop
High Forward Surge Current Capability
For use in low voltage, high frequency inverters, freewheeling,
and polarity protection applications
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Case: POWERDI®5
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed Over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.096 grams (Approximate)
Specifications of PESD3V3L4UG,115
|
Product
|
PESD3V3L4UG,115
|
|
Type
|
Zener
|
|
Unidirectional Channels
|
4
|
|
Voltage - Reverse Standoff (Typ)
|
3.3V (Max)
|
|
Voltage - Breakdown (Min)
|
5.32V
|
|
Voltage - Clamping (Max) @ Ipp
|
12V
|
|
Current - Peak Pulse (10/1000µs)
|
3A (8/20µs)
|
|
Power - Peak Pulse
|
30W
|
|
Power Line Protection
|
No
|
|
Applications
|
General Purpose
|
|
Capacitance @ Frequency
|
22pF @ 1MHz
|
|
Operating Temperature
|
-65°C ~ 150°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
5-TSSOP, SC-70-5, SOT-353
|
|
Supplier Device Package
|
5-TSSOP
|
|
Base Product Number
|
PESD3
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
