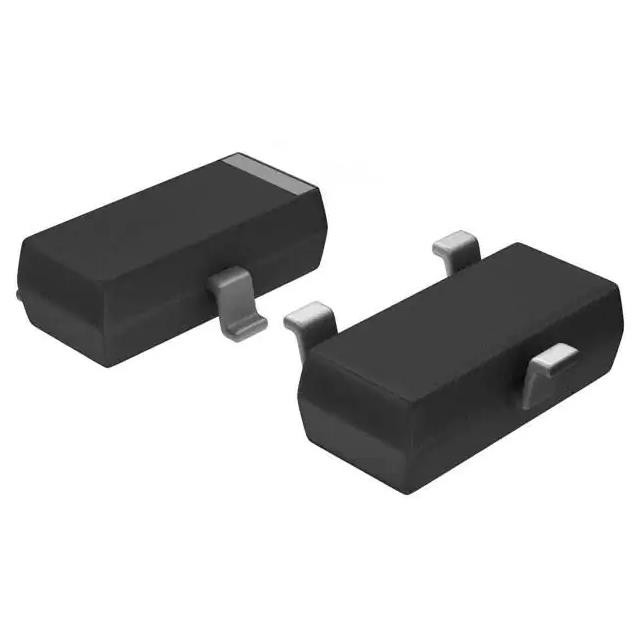

MMBD4448 -TP Tantalum Chip Capacitor Diode 75 V 250mA Surface Mount SOT-23
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | MMBD4448 -TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | MMBD4448 -TP | Voltage - DC Reverse (Vr) (Max): | 75 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 250mA | Voltage - Forward (Vf) (Max) @ If: | 1.25 V @ 150 MA |
| CCurrent - Reverse Leakage @ Vr: | 2.5 µA @ 75 V | Operating Temperature - Junction: | -55°C ~ 150°C |
Product Description
MMBD4448 -TP Tantalum Chip Capacitor Diode 75 V 250mA Surface Mount SOT-23
Diode 75 V 250mA Surface Mount SOT-23
Features of MMBD4448 -TP
• Fast Switching Speed
• Surface Mount Package Ideally Suited for Automatic Insertion
• For General Purpose Switching Applications
• Halogen Free. "Green" Device (Note 1)
• Moisture Sensitivity Level 1
• Epoxy Meets UL 94 V-0 Flammability Rating
• Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Compliant. See Ordering Information)
Specifications of MMBD4448 -TP
|
Product
|
MMBD4448 -TP
|
|
Technology
|
Standard
|
|
Voltage - DC Reverse (Vr) (Max)
|
75 V
|
|
Current - Average Rectified (Io)
|
250mA
|
|
Voltage - Forward (Vf) (Max) @ If
|
1.25 V @ 150 mA
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Reverse Recovery Time (trr)
|
4 ns
|
|
Current - Reverse Leakage @ Vr
|
2.5 µA @ 75 V
|
|
Capacitance @ Vr, F
|
4pF @ 0V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23
|
|
Operating Temperature - Junction
|
-55°C ~ 150°C
|
|
Base Product Number
|
MMBD4448
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
