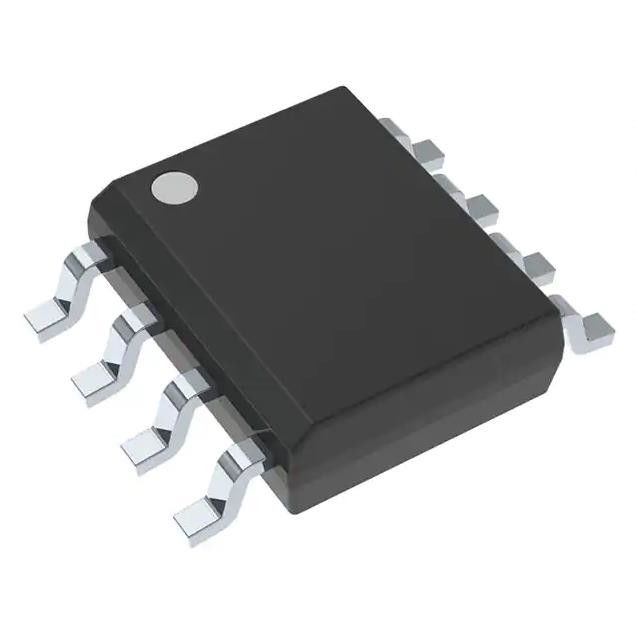

SN65MLVD200ADRG4 25 mV 1/1 Transceiver Half LVDS, Multipoint 8-SOIC
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SN65MLVD200ADRG4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | SN65MLVD200ADRG4 | Number Of Drivers/Receivers: | 1/1 |
|---|---|---|---|
| Duplex: | Half | Receiver Hysteresis: | 25 MV |
| Data Rate: | 100Mbps | Operating Temperature: | -40°C ~ 85°C |
| Voltage - Supply: | 3V ~ 3.6V | Protocol: | LVDS, Multipoint |
Product Description
SN65MLVD200ADRG4 25 mV 1/1 Transceiver Half LVDS, Multipoint 8-SOIC
1/1 Transceiver Half LVDS, Multipoint 8-SOIC
Features of SN65MLVD200ADRG4
Low-Voltage Differential 30-Ω to 55-Ω Line Drivers and Receivers for Signaling Rates(1)up to 100 Mbps,Clock Frequencies up to 50 MHz
Type-1 Receivers Incorporate 25 mV of Hysteresis(SN65MLVD200A,SN65MLVD202A)
Controlled Driver Output Voltage Transition Times for Improved Signal Quality
-1V to 3.4 V of Common-Mode Voltage Range Allows Data Transfer With 2 V of Ground Noise
Bus Pins High Impedance When Disabled or Vcc $1.5V
200-Mbps Devices Available(SN65MLVD201, SN65MLVD203,SN65MLVD206,SN65MLVD207)
Bus Pin ESD Protection Exceeds 8 kV
Packages Available:- 8-Pin SOIC
SN65MLVD202A,SN65MLVD205A
Specifications of SN65MLVD200ADRG4
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
SN65MLVD200ADRG4
|
|
Type
|
Transceiver
|
|
Protocol
|
LVDS, Multipoint
|
|
Number of Drivers/Receivers
|
1/1
|
|
Duplex
|
Half
|
|
Receiver Hysteresis
|
25 mV
|
|
Data Rate
|
100Mbps
|
|
Voltage - Supply
|
3V ~ 3.6V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
65MLVD200
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
Applications of SN65MLVD200ADRG4
· Low-Power,High-Speed, Short-Reach Altemative to TIA/EIA-485
· Backplane or Cabled Multipoint Data and Clock
