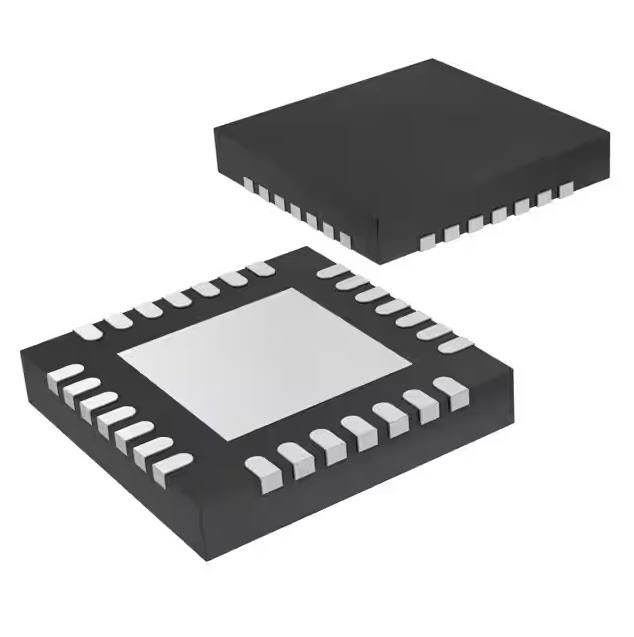

LM5045SQ / NOPB Converter Offline Full-Bridge Topology Up to 2MHz 28-WQFN
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LM5045SQ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | LM5045SQ/NOPB | Voltage - Supply (Vcc/Vdd): | 14V ~ 100V |
|---|---|---|---|
| Frequency - Switching: | Up To 2MHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Supplier Device Package: | 28-WQFN (5x5) | Base Product Number: | LM5045 |
Product Description
LM5045SQ / NOPB Converter Offline Full-Bridge Topology Up to 2MHz 28-WQFN
Converter Offline Full-Bridge Topology Up to 2MHz 28-WQFN (5x5)
Features of LM5045SQ/NOPB
Highest Integration Controller for Small Form
• High-Voltage Start-Up Regulator
• Intelligent Sync Rectifier Start-Up Allows Linear
Turnon Into Prebiased Loads
• Two Independent, Programmable Synchronous
Rectifier Dead-Time Adjustments
• Four High-Current 2-A Bridge Gate Drivers
• Configurable for Either Current Mode or Voltage
Mode Control
• Dual-Mode Overcurrent Protection
• Programmable Line UVLO and OVP
Specifications of LM5045SQ/NOPB
|
Product Status
|
LM5045SQ/NOPB
|
|
Output Isolation
|
Isolated
|
|
Internal Switch(s)
|
No
|
|
Voltage - Breakdown
|
-
|
|
Topology
|
Full-Bridge
|
|
Voltage - Supply (Vcc/Vdd)
|
14V ~ 100V
|
|
Duty Cycle
|
-
|
|
Frequency - Switching
|
Up to 2MHz
|
|
Fault Protection
|
Current Limiting, Over Temperature, Over Voltage
|
|
Control Features
|
Frequency Control, Soft Start, Sync
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Package / Case
|
28-WFQFN Exposed Pad
|
|
Supplier Device Package
|
28-WQFN (5x5)
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
LM5045
|
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of LM5045SQ/NOPB
• E-Bike PART NUMBER PACKAGE BODY SIZE (NOM)
• Military: Radar and Electronic Warfare
Power: Telecom DC-DC Module: Analog
Private Branch Exchange (PBX)
Solar Power Inverters
Vector Signal Generators
Microwave Ovens
