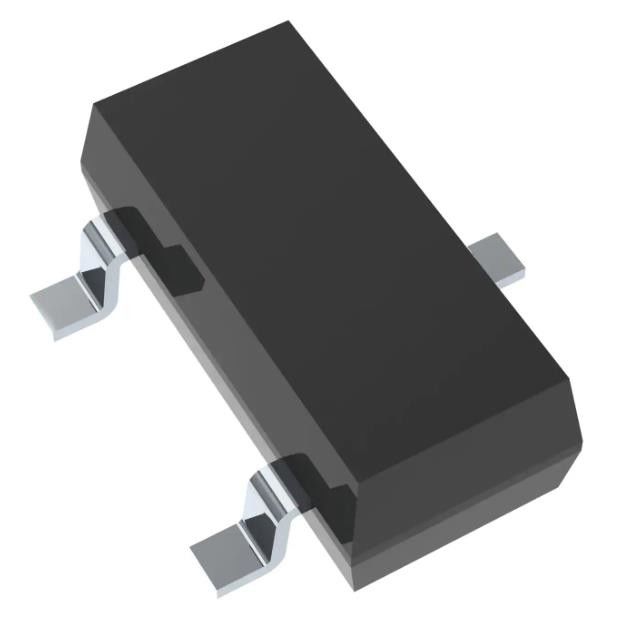

IMBD4448-E3-18 TVS Diode SMD 75 V 150mA Surface Mount SOT-23-3 75 V
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | IMBD4448-E3-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | IMBD4448-E3-18 | Voltage - DC Reverse (Vr) (Max): | 150mA |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 10 MA | Current - Reverse Leakage @ Vr: | 2.5 µA @ 70 V |
| Reverse Recovery Time (trr): | 4 Ns | ||
Product Description
IMBD4448-E3-18 TVS Diode SMD 75 V 150mA Surface Mount SOT-23-3 75 V
Diode 75 V 150mA Surface Mount SOT-23-3
Features of IMBD4448-E3-18
• Silicon epitaxial planar diode
• Fast switching diode in case SOT-23, especially
suited for automatic insertion.
• AEC-Q101 qualified available
• Base P/N-E3 - RoHS-compliant, commercial
grade
• Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
• Material categorization: for definitions of compliance
• Case: SOT-23
• Weight: approx. 8.8 mg
• Packaging codes / options:
• 18/10K per 13" reel (8 mm tape), 10K/box
• 08/3K per 7" reel (8 mm tape), 15K/box
|
Product
|
IMBD4448-E3-18
|
|
Technology
|
Standard
|
|
Voltage - DC Reverse (Vr) (Max)
|
75 V
|
|
Current - Average Rectified (Io)
|
150mA
|
|
Voltage - Forward (Vf) (Max) @ If
|
1 V @ 10 mA
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
Reverse Recovery Time (trr)
|
4 ns
|
|
Current - Reverse Leakage @ Vr
|
2.5 µA @ 70 V
|
|
Capacitance @ Vr, F
|
-
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23-3
|
|
Operating Temperature - Junction
|
150°C (Max)
|
|
Base Product Number
|
IMBD4448
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
