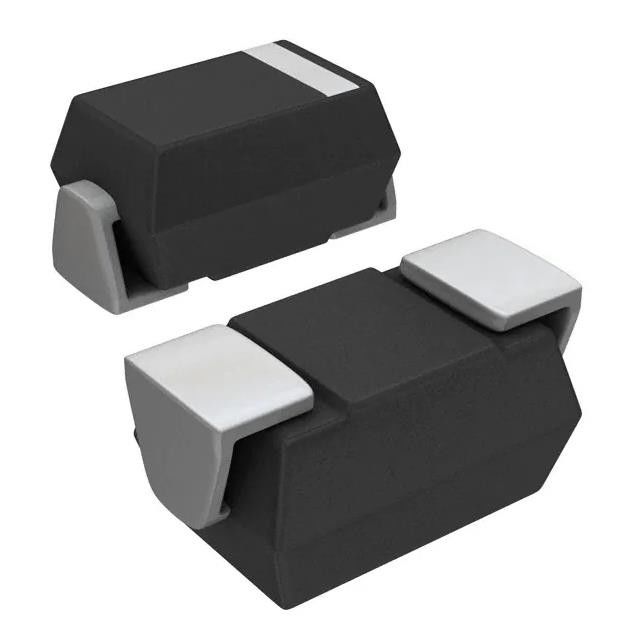

ES1BE-TP TVS Diode SMD 100 V 1A Surface Mount DO-214AC SMAE 50 ns
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ES1BE-TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | ES1BE-TP | Operating Temperature - Junction: | -50°C ~ 150°C |
|---|---|---|---|
| Current - Average Rectified (Io): | 1A | Voltage - Forward (Vf) (Max) @ If: | 920 MV @ 1 A |
| Current - Reverse Leakage @ Vr: | 5 µA @ 100 V | Capacitance @ Vr, F: | 45pF @ 4V, 1MHz |
Product Description
ES1BE-TP TVS Diode SMD 100 V 1A Surface Mount DO-214AC SMAE 50 ns
Operating Temperature: -50qC to +150qC
Storage Temperature: -50qC to +150qC
Maximum Thermal Resistance; 15qC/W Junction To Lead
Features of ES1BE-TP
• Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates
Compliant. See ordering information)
Note: 1. High Temperature Solder Exemptions Applied, see EU Directive Annex 7.
· Moisture Sensitivity Level 1
· Epoxy meets UL 94 V-0 flammability rating
x High Temp Soldering: 260qC for 10 Seconds At Terminals
x Superfast Recovery Times For High Efficiency
• Halogen free available upon request by adding suffix "-HF"
Product Attributes of ES1BE-TP
|
Mfr
|
Micro Commercial Co
|
|
Series
|
-
|
|
Product Status
|
Discontinued at Digi-Key
|
|
Technology
|
Standard
|
|
Voltage - DC Reverse (Vr) (Max)
|
100 V
|
|
Current - Average Rectified (Io)
|
1A
|
|
Voltage - Forward (Vf) (Max) @ If
|
975 mV @ 1 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Reverse Recovery Time (trr)
|
50 ns
|
|
Current - Reverse Leakage @ Vr
|
5 µA @ 100 V
|
|
Capacitance @ Vr, F
|
45pF @ 4V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AC, SMA
|
|
Supplier Device Package
|
DO-214AC (SMAE)
|
|
Operating Temperature - Junction
|
-50°C ~ 150°C
|
|
Base Product Number
|
ES1B
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
Ordering Information of ES1BE-TP
| Device Packing | Device Packing |
| Part Number-TP | Tape&Reel: 6Kpcs/Reel |
