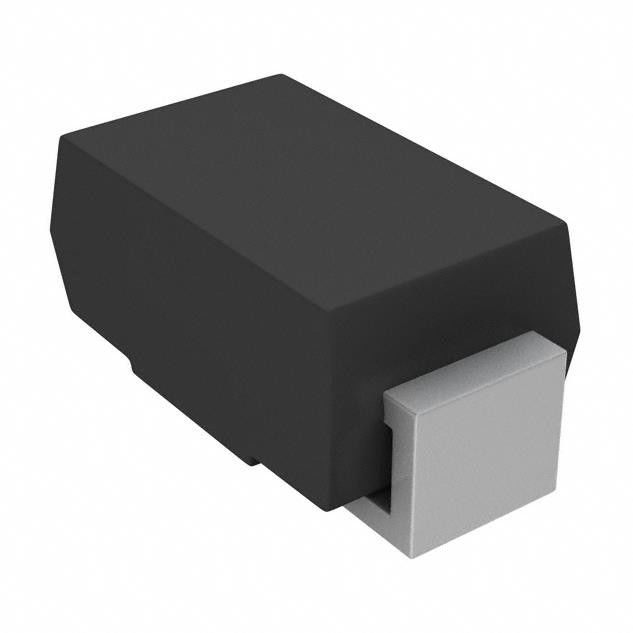

ES1B-E3 61T Diode 100 V 1A Surface Mount DO-214AC (SMA) 920 mV @ 1 A
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ES1B-E3 61T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Name: | ES1B-E3 61T | Voltage - Forward (Vf) (Max) @ If: | 920 MV @ 1 A |
|---|---|---|---|
| IFSM: | 30 A | Trr: | 15 Ns |
| TJ Max.: | 150 °C | Package: | SMA (DO-214AC) |
Product Description
ES1B-E3 61T Diode 100 V 1A Surface Mount DO-214AC (SMA) 920 mV @ 1 A
General-purpose Zener diodes in a SOD123F small and flat lead Surface-Mounted
Device (SMD) plastic package
Features of ES1B-E3 61T
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Ultrafast recovery times for high efficiency
• Low forward voltage, low power losses
• High forward surge capability
• Meets MSL level 1, per J-STD-020,
LF maximum peak of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: P/NHE3 or P/NHM3
Case: SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals: matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3, and HM3 suffix meets JESD 201 class 2
whisker test
Product Attributes of ES1B-E3 61T
|
Product Status
|
Active
|
|
Technology
|
Standard
|
|
Voltage - DC Reverse (Vr) (Max)
|
100 V
|
|
Current - Average Rectified (Io)
|
1A
|
|
Voltage - Forward (Vf) (Max) @ If
|
920 mV @ 1 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Reverse Recovery Time (trr)
|
25 ns
|
|
Current - Reverse Leakage @ Vr
|
5 µA @ 100 V
|
|
Capacitance @ Vr, F
|
10pF @ 4V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AC, SMA
|
|
Supplier Device Package
|
DO-214AC (SMA)
|
|
Operating Temperature - Junction
|
-55°C ~ 150°C
|
|
Base Product Number
|
ES1
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
TYPICAL APPLICATIONS of ES1B-E3 61T
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, automotive and telecommunication.
