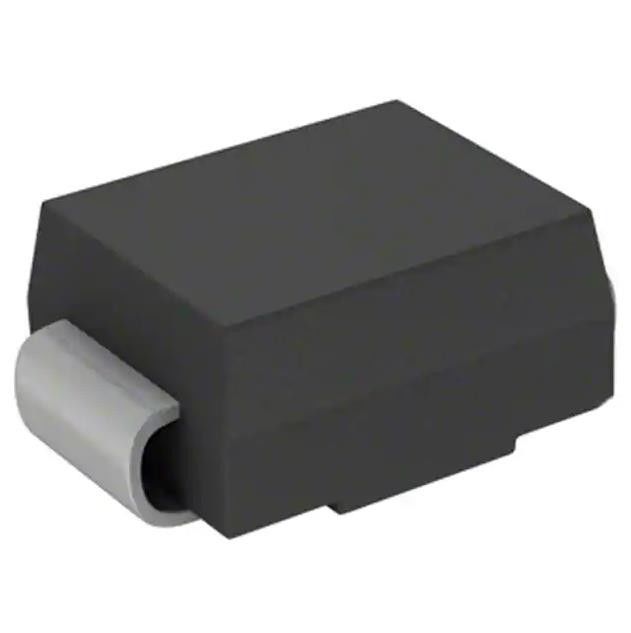

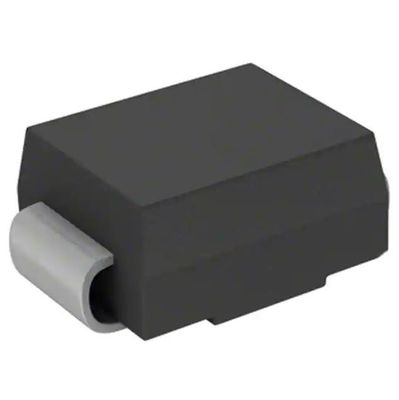

ES1B-13-F Diode 100 V 1A Surface Mount SMA
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ES1B-13-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | ES1B-13-F | Voltage - DC Reverse (Vr) (Max): | 100 V |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 920 MV @ 1 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Package / Case: | DO-214AC, SMA | Operating Temperature - Junction: | -55°C ~ 150°C |
Product Description
ES1B Diode 100 V 1A Surface Mount DO-214AC (SMA) 100 V -55°C ~ 150°C
Zener Diode 15 V 375 mW ±6% Surface Mount SOD-123F
Features of ES1B-13-F
Glass Passivated Die Construction
Super-Fast Recovery Time for High Efficiency
Surge Overload Rating to 30A Peak
Ideally Suited for Automated Assembly
Lead Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free “Green” Device (Note 3)
Glass Passivated Die Construction
Super-Fast Recovery Time for High Efficiency
Surge Overload Rating to 30A Peak
Ideally Suited for Automated Assembly
Lead Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free “Green” Device (Note 3)
Product Attributes of ES1B-13-F
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
-
|
| Package | Tape & Reel |
|
Product Status
|
Active
|
|
Technology
|
Standard
|
|
Voltage - DC Reverse (Vr) (Max)
|
100 V
|
|
Current - Average Rectified (Io)
|
1A
|
|
Voltage - Forward (Vf) (Max) @ If
|
920 mV @ 1 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Reverse Recovery Time (trr)
|
25 ns
|
|
Current - Reverse Leakage @ Vr
|
5 µA @ 100 V
|
|
Capacitance @ Vr, F
|
10pF @ 4V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AC, SMA
|
|
Supplier Device Package
|
SMA
|
|
Operating Temperature - Junction
|
-55°C ~ 150°C
|
|
Base Product Number
|
ES1B
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
