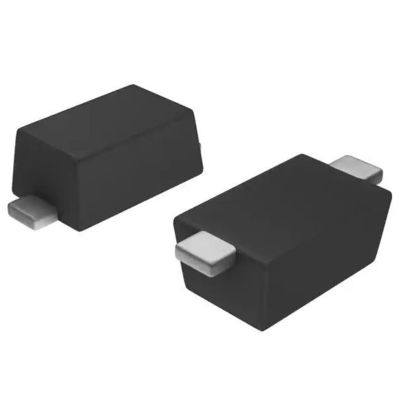

BZT52H-C15WF-7 Zener Diode 15 V 375 mW ±6% Surface Mount SOD-123F
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BZT52H-C15WF-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | BZT52H-C15WF-7 | Weight: | 0.015 Grams (Approximate) |
|---|---|---|---|
| Polarity: | Cathode Band | Moisture Sensitivity: | Level 1 Per J-STD-020 |
| Case:: | SOD123F (Type B) | Voltage - Zener (Nom) (Vz): | 15 V |
Product Description
BZT52H-C15WF-7 Zener Diode 15 V 375 mW ±6% Surface Mount SOD-123F
Zener Diode 15 V 375 mW ±6% Surface Mount SOD-123F
Features of BZT52H-C15WF-7
Flat Lead Package Design for Low Profile and High Power Dissipation
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data of BZT52H-C15WF-7
Case: SOD123F (Type B)
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish - Matte Tin Annealed over Copper Alloy
Leadframe. Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.015 grams (Approximate)
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Discrete Semiconductor Products
Diodes
Zener
Single Zener Diodes
|
|
Mfr
|
Diodes Incorporated
|
|
Series
|
Automotive, AEC-Q101
|
| Package | Tape & Reel (TR) |
|
Product Status
|
Active
|
|
Voltage - Zener (Nom) (Vz)
|
15 V
|
|
Tolerance
|
±6%
|
|
Power - Max
|
375 mW
|
|
Impedance (Max) (Zzt)
|
15 Ohms
|
|
Current - Reverse Leakage @ Vr
|
50 nA @ 10.5 V
|
|
Voltage - Forward (Vf) (Max) @ If
|
900 mV @ 10 mA
|
|
Operating Temperature
|
-65°C ~ 150°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOD-123F
|
|
Supplier Device Package
|
SOD-123F
|
|
Base Product Number
|
BZT52
|
range (−10 ̊
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
