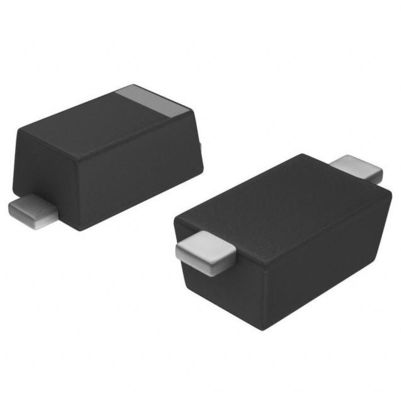

BZT52H-C5V1 115 TVS Diode SMD 5.1 V 375 mW ±5% Surface Mount SOD-123F
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BZT52H-C5V1 115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Total Power Dissipation:: | ≤ 830 MW | Wide Working Voltage Range:: | Nominal 2.4 V To 75 V (E24 Range) |
|---|---|---|---|
| T Amb: | ≤ 25 °C | I F: | 10 MA |
| Pulse Test: | Tp ≤ 300 μs; δ ≤ 0.02 | Voltages: | 2.4 V To 75 V |
Product Description
BZT52H-C5V1 115 TVS Diode SMD 5.1 V 375 mW ±5% Surface Mount SOD-123F
General-purpose Zener diodes in a SOD123F small and flat lead Surface-Mounted
Device (SMD) plastic package
Features of BZT52H-C5V1 115
Total power dissipation: ≤ 830 mW
Low differential resistance
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
AEC-Q101 qualified
Small plastic package suitable for surface-mounted design
Product Attributes of BZT52H-C5V1 115
|
Symbol
Symbol
|
Parameter
|
Conditions | Min | Typ | Max | Unit |
| VF
|
forward voltage | I F = 10 mA | [1] - li | - | 0.9 | V |
| Ptot | total power dissipation | T amb ≤ 25 °C | - | - | 375 | mW |
