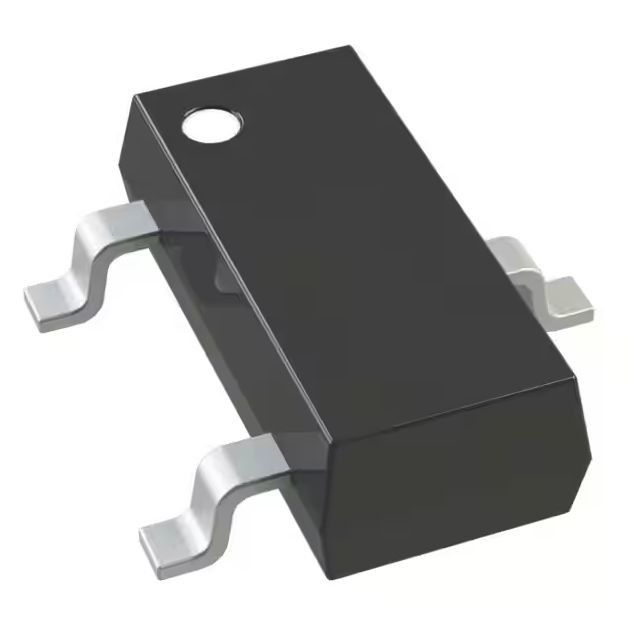

BAS70-7-F TVS Diode SMD Diode 70 V 70mA Surface Mount SOT-23-3
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BAS70-7-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 70 V | Current - Average Rectified (Io): | 70mA |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 15 MA | Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 | Operating Temperature - Junction: | -55°C ~ 125°C |
Product Description
BAS70 215 Diode 70 V 70mA Surface Mount TO-236AB 70V 70mA TO-236AB
Features of BAS70-7-F
Low Turn-On Voltage
Fast Switching
PN Junction Guard Ring for Transient and ESD Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3
Product Attributes of BAS70-7-F
|
Technology
|
Schottky
|
|
Voltage - DC Reverse (Vr) (Max)
|
70 V
|
|
Current - Average Rectified (Io)
|
70mA
|
|
Voltage - Forward (Vf) (Max) @ If
|
1 V @ 15 mA
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
Reverse Recovery Time (trr)
|
5 ns
|
|
Current - Reverse Leakage @ Vr
|
100 nA @ 50 V
|
|
Capacitance @ Vr, F
|
2pF @ 0V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23-3
|
|
Operating Temperature - Junction
|
-55°C ~ 125°C
|
|
Base Product Number
|
BAS70
|
Environmental & Export Classifications of BAS70-7-F
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
Mechanical Data BAS70-7-F
Case: SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish Annealed over Alloy 42
Leadframe)
Polarity: See Diagrams Below
Weight: 0.008 grams (Approximate)
