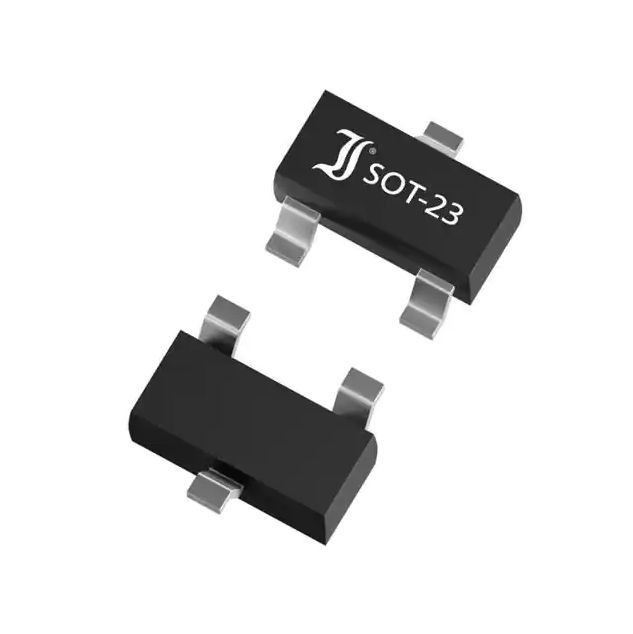

BAS70 Diode 70 V 70mA Surface Mount SOT-23-3 (TO-236) 1 V 15 mA
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | BAS70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Forward (Vf) (Max) @ If: | 1 V @ 15 MA | Reverse Recovery Time (trr): | 5 Ns |
|---|---|---|---|
| Current - Reverse Leakage @ Vr: | 10 µA @ 70 V | Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number: | BAS70 | ||
Product Description
BAS70 Diode 70 V 70mA Surface Mount SOT-23-3 (TO-236) 1 V 15 mA
Features of BAS70
Very high switching speed
Low junction capacitance.
Low leakage current
Compliant to RoHS(w/o exemp.)
REACH, Conflict Minerals
Product Attributes of BAS70
range (−10 ̊
|
Product
|
BAS70
|
|
Technology
|
Schottky
|
|
Voltage - DC Reverse (Vr) (Max)
|
70 V
|
|
Current - Average Rectified (Io)
|
70mA
|
|
Voltage - Forward (Vf) (Max) @ If
|
1 V @ 15 mA
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
Reverse Recovery Time (trr)
|
5 ns
|
|
Current - Reverse Leakage @ Vr
|
100 nA @ 50 V
|
|
Capacitance @ Vr, F
|
2pF @ 0V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
Supplier Device Package
|
SOT-23-3 (TO-236)
|
|
Operating Temperature - Junction
|
-55°C ~ 150°C
|
Environmental & Export Classifications
with improved accuracy). The LM35 series is available pack-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH info available upon request |
| HTSUS | 8541.10.0000 |
