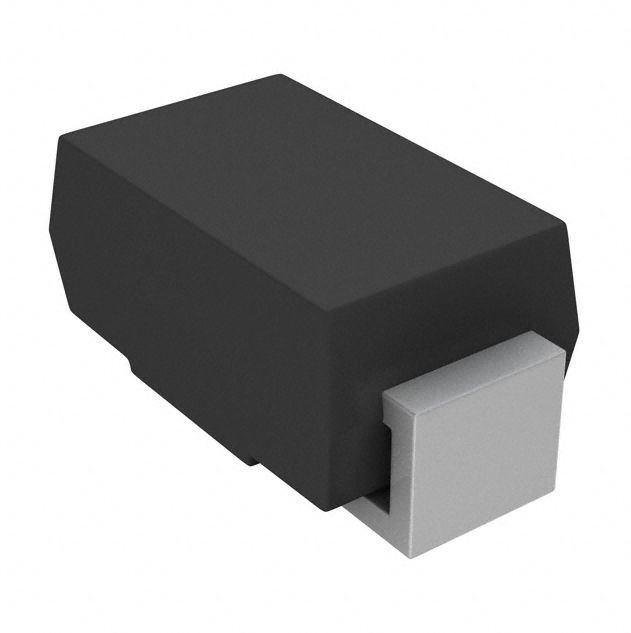

B340A-E3 61T TVS Diode SMD 40 V 3A Surface Mount DO-214AC (SMA)
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | B340A-13-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 40 V | Current - Average Rectified (Io): | 3A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 500 MV @ 3 A | Current - Reverse Leakage @ Vr: | 500 µA @ 40 V |
| Package / Case: | DO-214AC, SMA | Base Product Number: | B340 |
Product Description
B340A-E3 61T TVS Diode SMD 40 V 3A Surface Mount DO-214AC (SMA)
Features of B340A-13-F
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• Material categorization: for definitions of compliance
Product Attributes of B340A-13-F
|
Product
|
B340A-13-F
|
|
Series
|
Automotive, AEC-Q101
|
|
Product Status
|
Active
|
|
Technology
|
Schottky
|
|
Voltage - DC Reverse (Vr) (Max)
|
40V
|
|
Current - Average Rectified (Io)
|
3A
|
|
Voltage - Forward (Vf) (Max) @ If
|
500 mV @ 3 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Current - Reverse Leakage @ Vr
|
500 µA @ 40 V
|
|
Capacitance @ Vr, F
|
200pF @ 4V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AC, SMA
|
|
Supplier Device Package
|
SMA
|
|
Operating Temperature - Junction
|
-55°C ~ 150°C
|
|
Base Product Number
|
B340
|
Environmental & Export Classifications of B340A-13-F
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
TYPICAL APPLICATIONS of B340A-13-F
For use in low voltage, high frequency inverters,
freewheeling, DC/DC converters, and polarity protection applications.
Note
• These devices are not AEC-Q101 qualified
