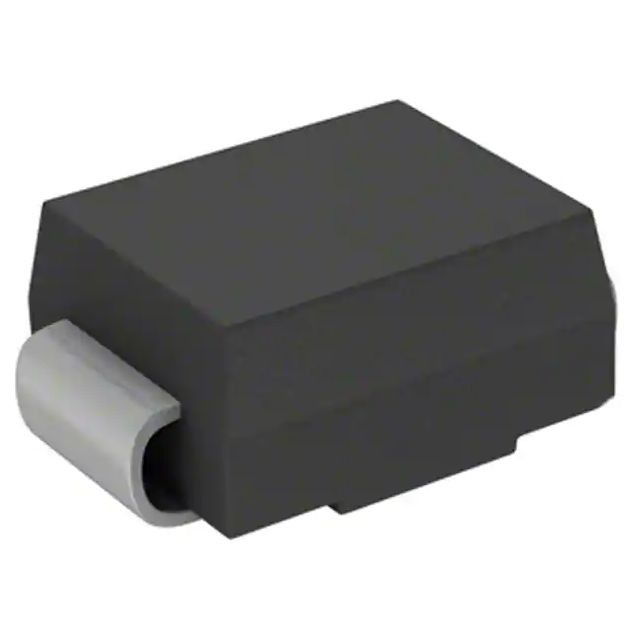

B340A-13-F Diode 40 V 3A Surface Mount SMA 500 µA 200pF -55°C ~ 150°C
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | B340A-13-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 40 V | Current - Average Rectified (Io): | 3A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 500 MV @ 3 A | Current - Reverse Leakage @ Vr: | 500 µA @ 40 V |
| Capacitance @ Vr, F: | 200pF @ 4V, 1MHz | Operating Temperature - Junction: | -55°C ~ 150°C |
Product Description
B340A-13-F Diode 40 V 3A Surface Mount SMA 500 µA 200pF -55°C ~ 150°C
Features of B340A-13-F
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Product Attributes of B340A-13-F
|
Product
|
B340A-13-F
|
|
Series
|
Automotive, AEC-Q101
|
|
Product Status
|
Active
|
|
Technology
|
Schottky
|
|
Voltage - DC Reverse (Vr) (Max)
|
40 V
|
|
Current - Average Rectified (Io)
|
3A
|
|
Voltage - Forward (Vf) (Max) @ If
|
500 mV @ 3 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Current - Reverse Leakage @ Vr
|
500 µA @ 40 V
|
|
Capacitance @ Vr, F
|
200pF @ 4V, 1MHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
DO-214AC, SMA
|
|
Supplier Device Package
|
SMA
|
|
Operating Temperature - Junction
|
-55°C ~ 150°C
|
|
Base Product Number
|
B340
|
Environmental & Export Classifications of B340A-13-F
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
Mechanical Data of B340A-13-F
The LM35 series are precision integrated-circuit temperature
sensors, whose output voltage is linearly proportional to the
Celsius (Centigrade) temperature. The LM35 thus has an
advantageae over linr temperature sensors calibrated in
̊ Kelvin, as the user is not required to subtract a large
co4 ̊C
at roke
interfacing to readnd
minus supplies. As it draws only 60 μA from its supply, it has
very low self-heating, less than 0.1 ̊C in still air. The LM35 is
rated to operate over a −55 ̊ to +150 ̊C temperature range,
while the LM35C is rated for a −40 ̊ to +110 ̊C range (−10 ̊
with improved accuracy). The LM35 series is available pack-
