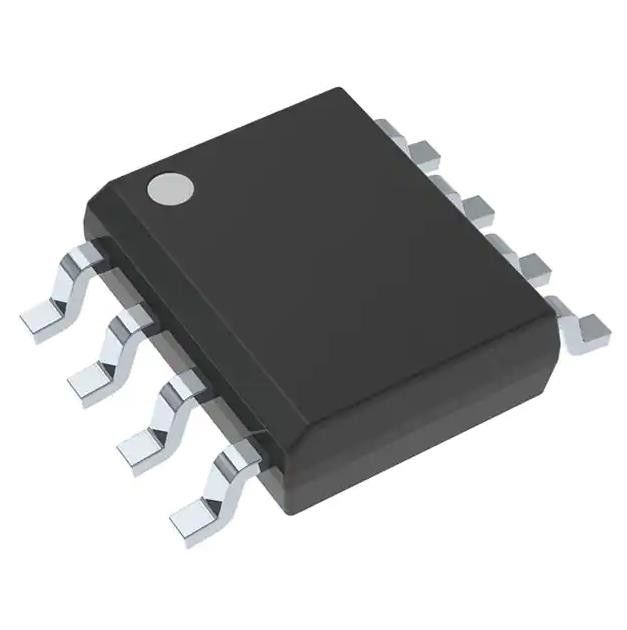

OPA132UA 2K5 General Purpose Amplifier 1 Circuit 8-SOIC 20V/µs 5 pA
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | OPA132UA 2K5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Slew Rate: | 20V/µs |
|---|---|---|---|
| Gain Bandwidth Product: | 8 MHz | Current - Input Bias: | 5 PA |
| Voltage - Input Offset: | 500 µV | Current - Supply: | 4mA |
| Operating Temperature: | -40°C ~ 85°C | ||
Product Description
OPA132UA 2K5 General Purpose Amplifier 1 Circuit 8-SOIC
Features
FET input: IB = 50 pA Maximum FET input: IB = 50 pA Maximum FET input: IB = 50 pA Maximum
Wide Bandwidth: 8 MHz
High Slew Rate: 20 V/μs
Low Noise: 8nV/√Hz (1 kHz)
Low Distortion: 0.00008%)
High Open-loop Gain: 130 dB (600-Ω load)
Wide Supply Range: ±2.5 to ±18V
Low Offset Voltage: 500 μV Maximum
Single, Dual, and Quad Versions
Applications
SAR ADC Driver
Voltage Reference Buffer
Trans-impedance Amplifier
Photodiode Amplifier
Active Filters
Integrators
Product Attributes
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, OP Amps, Buffer Amps
|
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Amplifier Type
|
General Purpose
|
|
Number of Circuits
|
1
|
|
Output Type
|
-
|
|
Slew Rate
|
20V/µs
|
|
Gain Bandwidth Product
|
8 MHz
|
|
Current - Input Bias
|
5 pA
|
|
Voltage - Input Offset
|
500 µV
|
|
Current - Supply
|
4mA
|
|
Current - Output / Channel
|
40 mA
|
|
Voltage - Supply Span (Min)
|
5 V
|
|
Voltage - Supply Span (Max)
|
36 V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
OPA132
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
