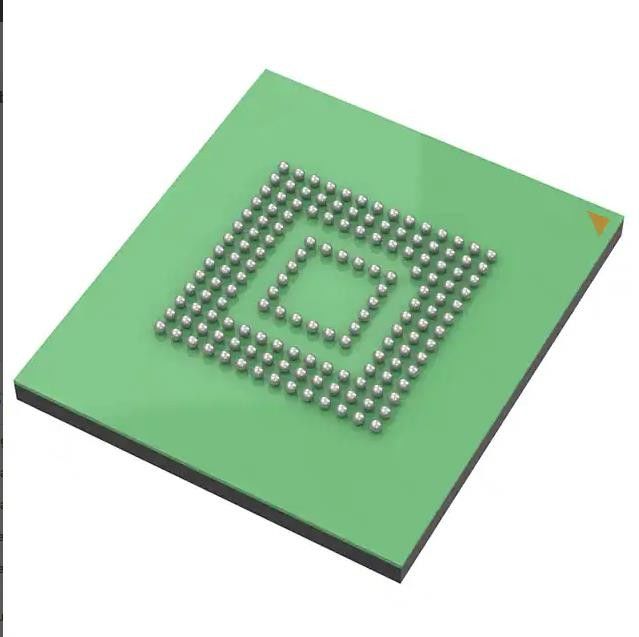

IS21ES08G-JCLI eMMC 8GB 3.3V 200Mhz eMMC NAND Flash Memory

Product Description

IS21ES08G-JCLI eMMC 8GB 3.3V 200Mhz eMMC NAND Flash Memory Data Storage

FLASH - NAND (MLC) Memory IC 64Gbit eMMC 200 MHz 153-VFBGA (11.5x13)

FEATURES of IS21ES08G-JCLI

• Packaged NAND flash memory with eMMC 5.0 interface
• IS21/22ES08G: 8Gigabyte
• Compliant with eMMC Specification Ver.4.4, 4.41,4.5,5.0
• Bus mode
- High-speed eMMC protocol
- Clock frequency: 0-200MHz.
- Ten-wire bus (clock, 1 bit command, 8 bit data bus) and a hardware reset.
• Supports three different data bus widths : 1 bit(default), 4 bits, 8 bits
- Data transfer rate: up to 52Mbyte/s (using 8 parallel data lines at 52 MHz)
- Single data rate : up to 200Mbyte/s @ 200MHz (HS200)
- Dual data rate : up to 400Mbyte/s @ 200MHz (HS400)
• Operating voltage range :
- VCCQ = 1.8 V/3.3 V
- VCC = 3.3 V
• Supports Enhanced Mode where the device can be configured as pseudo-SLC (pSLC) for higher
read/write performance, endurance, and reliability.
• Error free memory access
- Internal error correction code (ECC) to protect data communication
- Internal enhanced data management algorithm
- Solid protection from sudden power failure, safe-update operations for data content

Specifications of IS21ES08G-JCLI
