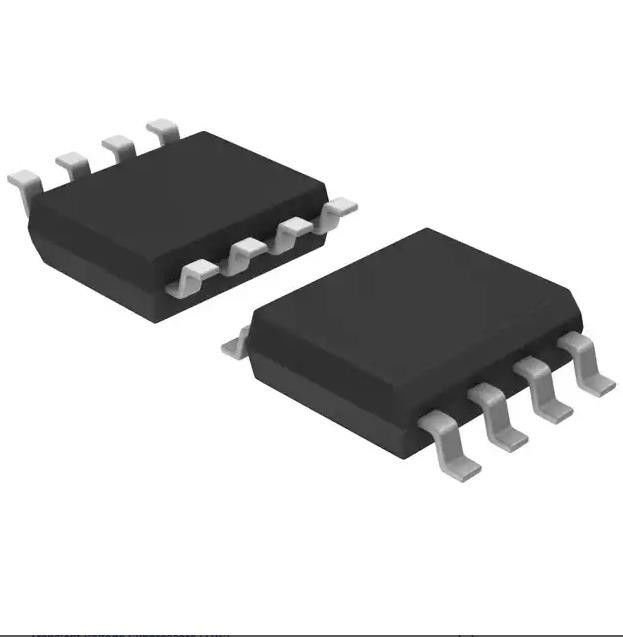

SLVU2.8-4BTG TVS Diode SMD Surface Mount 8-SOIC 15V Clamp 40A (8/20µs) Ipp
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SLVU2.8-4BTG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Packaging: | Reel | Package / Case: | SOIC-8 |
|---|---|---|---|
| Breakdown Voltage: | 3 V | Pppm - Peak Pulse Power: | 600 W |
| Operating Temperature: | -40℃~+125℃ | FPQ: | 2500 |
Product Description
SLVU2.8-4BTG TVS Diode SMD Surface Mount 8-SOIC 15V Clamp 40A (8/20µs) Ipp
TVS DIODE 2.8VWM 15VC 8-SOIC
Features of SLVU2.8-4BTG
• ESD, IEC 61000-4-2 ±30kV contact, ±30kV air
• EFT, IEC 61000-4-4, 40A (5/50ns)
• Lightning, IEC 61000-4-5 2nd edition, 40A (8/20μs)
• Low capacitance of 2pF per line
• Low leakage current of 1μA (MAX) at 2.8V
• SOIC-8 (JEDEC MO-012) pin configuration allowsfor simple flow-through layout
• RoHS Compliant and Lead Free
• Moisture Sensitivity Level (MSL-1)
Specifications of SLVU2.8-4BTG
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Littelfuse Inc. |
| Series | SLVU2.8-4, SPA® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Zener |
| Bidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 2.8V (Max) |
| Voltage - Breakdown (Min) | 3V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Current - Peak Pulse (10/1000µs) | 40A (8/20µs) |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 2pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Applications of SLVU2.8-4BTG
• 10/100/1000 Ethernet
• WAN/LAN Equipment
• Switching Systems
• Desktops, Servers, and Notebooks
• Analog Inputs
• Base Stations
Description of SLVU2.8-4BTG
The SLVU2.8-4 was designed to protect low voltage, CMOS devices from ESD and lightning induced transients.
There is a compensating diode in series with each low voltage TVS to present a low loading capacitance to the line being protected.
