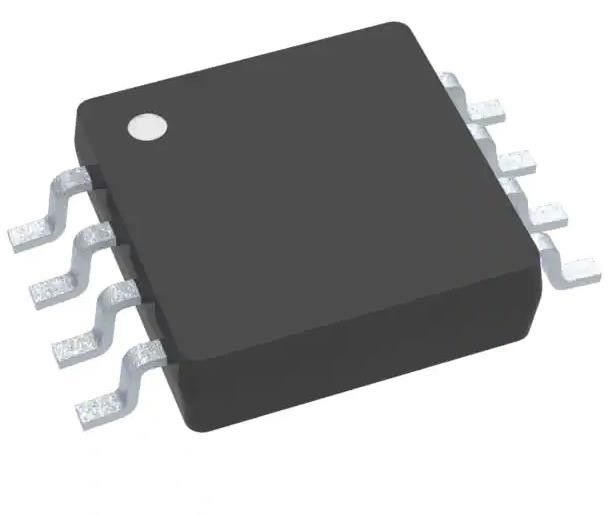

LM5008MM/NOPB Switching Regulator IC Positive Adjustable 2.5V 1 Output 350mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5008MM/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 9.5V | Voltage - Input (Max): | 95V |
| Voltage - Output (Min/Fixed): | 2.75V | Voltage - Output (Max): | 75V |
| Current - Output: | 350mA | Frequency - Switching: | 50kHz ~ 600kHz |
| High Light: | 350mA Switching Regulator IC,LM5008MM/NOPB Switching Regulator IC,2.5V Switching Regulator IC |
||
Product Description
LM5008MM/NOPB Switching Regulator IC Positive Adjustable 2.5V 1 Output 350mA
Specifications of LM5008MM/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9.5V |
| Voltage - Input (Max) | 95V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 75V |
| Current - Output | 350mA |
| Frequency - Switching | 50kHz ~ 600kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LM5008 |
Features of LM5008MM/NOPB
• Operating Input Voltage Range: 6 V to 95 V
• Integrated 100-V, N-Channel Buck Switch
• Internal VCC Regulator
• No Loop Compensation Required
• Ultra-Fast Transient Response
• On-Time Varies Inversely With Line Voltage
• Operating Frequency Remains Constant With Varying Line Voltage and Load Current
• Adjustable Output Voltage
• Highly Efficient Operation
• Precision Internal Reference
• Low Bias Current
• Intelligent Current Limit Protection
• Thermal Shutdown
• 8-Pin VSSOP and WSON Packages
• Create a Custom Design Using the LM5008 With the WEBENCH® Power Designer
Introduction of LM5008MM/NOPB
• Non-Isolated Telecommunication Buck Regulators
• Secondary High-Voltage Post Regulators
• 48-V Automotive Systems
