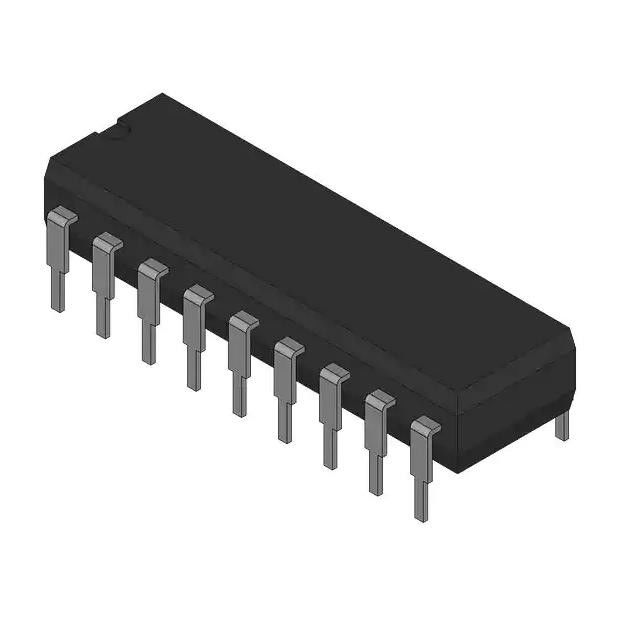

AD9768JD Integrated Circuit IC Chip 8 Bit Digital To Analog Converter IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD9768JD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Model: | AD9768JD | Package: | Bulk |
|---|---|---|---|
| Mfg: | TI | ECCN: | EAR99 |
| High Light: | AD9768JD IC Chip,Digital To Analog Converter ic,AD9768JD Integrated Circuit |
||
Product Description
AD9768JD Integrated Circuit IC Chips 8 Bit Digital to Analog Converter 1
8 Bit Digital to Analog Converter 1 18-SBDIP
Specifications of AD9768JD
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Analog Devices Inc. |
| Series | AD9768 |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 1 |
| Settling Time | 5ns |
| Output Type | Current - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | - |
| Voltage - Supply, Digital | 4.5V, 4.75V |
| INL/DNL (LSB) | - |
| Architecture | Multiplying DAC |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-SBDIP |
| Mounting Type | Through Hole |
Features of AD9768JD
5 ns Settling Time
100 MSPS Update Rate
20 mA Output Current
ECL-Compatible
40 MHz Multiplying Mode
APPLICATIONS
Raster Scan & Vector Graphic Displays
High Speed Waveform Generation
Digital VCOs
Ultrafast Digital Attenuators
Descriptions of AD9768JD
The Analog Devices AD9768SD D/A converter is a monolithic current-output converter which can accept 8 bits of ECL-level
digital input voltages and convert them into analog signals at update rates as high as 100 MSPS. In addition to its use as a
standard D/A converter, it can also be utilized as a two-quadrant multiplying D/A at multiplying bandwidths as high as 40 MHz.
Environmental & Export Classifications of AD9768JD
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
