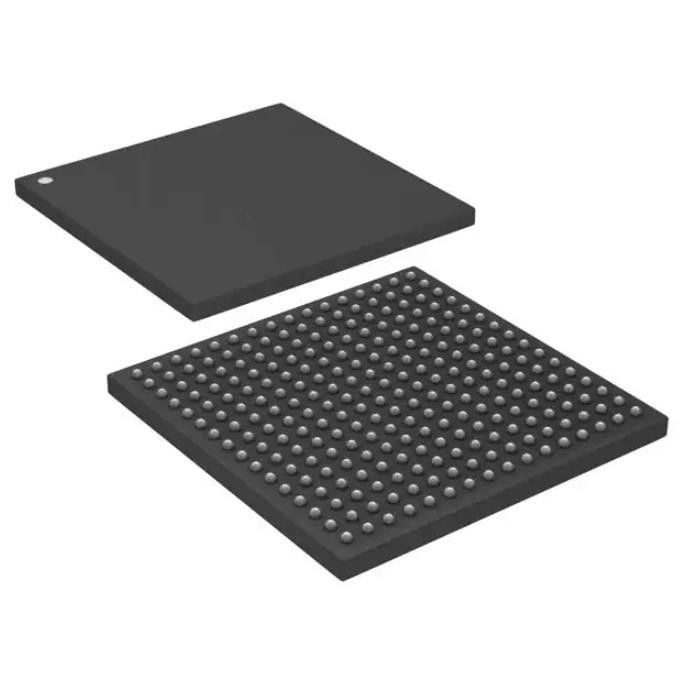

DS31407GN2 Surface Mount IC SONET/SDH SYNC CSBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS31407GN2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Ratio - Input:Output: | 3:04 |
|---|---|---|---|
| Differential - Input:Output: | Yes/Yes | Frequency - Max: | 750MHz |
| Voltage - Supply: | 1.8V | Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount | Package / Case: | 256-LBGA, CSBGA |
| High Light: | DS31407GN2 Surface Mount IC,Surface Mount IC SONET,CSBGA Surface Mount IC |
||
Product Description
Ethernet, SONET/SDH, Stratum, Telecom Clock/Frequency Synthesizer, Multiplexer IC 750MHz 1 Output 256-CSBGA (17x17)
Specifications of DS31407GN2
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Application Specific Clock/Timing | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tray |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| PLL | Yes |
| Main Purpose | Ethernet, SONET/SDH, Stratum, Telecom |
| Input | CMOS, TTL |
| Output | CML, CMOS, LVDS, LVPECL, TTL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 3:04 |
| Differential - Input:Output | Yes/Yes |
| Frequency - Max | 750MHz |
| Voltage - Supply | 1.8V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 256-LBGA, CSBGA |
| Supplier Device Package | 256-CSBGA (17x17) |
| Base Product Number | DS31407 |
Features of DS31407GN2
• Three Input Clocks
• Differential or CMOS/TTL Format
• Any Frequency from 2kHz to 750MHz
• Fractional Scaling for 64B/66B and FEC Scaling (e.g., 64/66, 237/255, 238/255) or Any Other Downscaling Requirement
• Continuous Input Clock Quality Monitoring
• Automatic or Manual Clock Selection
• Three 2/4/8kHz Frame Sync Inputs
• High-Performance DPLL
• Hitless Reference Switching on Loss of Input
• Automatic or Manual Phase Build-Out
• Holdover on Loss of All Inputs
• Programmable Bandwidth, 0.5mHz to 400Hz
• Two Digital Frequency Synthesizers
• Produce Any 2kHz Multiple Up to 77.76MHz
• Per-DFS Clock Phase Adjust
• High-Performance Output APLL
• Output Frequencies to 750MHz
• High Resolution Fractional Scaling for FEC and 64B/66B (e.g., 255/237, 255/238, 66/64) or Any Other Scaling Requirement
• Less than 1ps RMS Output Jitter
• Four Output Clocks in Two Groups
• Nearly Any Frequency from < 1Hz to 750MHz
• Each Group Slaves to a DFS Clock, an APLL Clock, or Any Input Clock (Divided and Scaled)
• Each Has a Differential Output (1 CML, 1 LVDS/ LVPECL) and Separate CMOS/TTL Output
• 32-Bit Frequency Divider Per Output
• Two Sync Pulse Outputs: 8kHz and 2kHz
• General Features
• Suitable Line Card IC or Timing Card IC for Stratum 2/3E/3/4E/4, SMC, SEC/EEC, or SSU
• Accepts and Produces Nearly Any Frequency Up to 750MHz Including 1Hz, 2kHz, 8kHz, NxDS1,
NxE1, DS2/J2, DS3, E3, 2.5M, 25M, 125M,156.25M, and Nx19.44M Up to 622.08M
• Internal Compensation for Local Oscillator Frequency Error
• SPI™ Processor Interface
• 1.8V Operation with 3.3V I/O (5V Tolerant)
Applications of DS31407GN2
Environmental & Export Classifications of DS31407GN2
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
