TPS62807YKAR Switching Regulator IC Positive Adjustable 0.8V (1.2V) 1 Output 600mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62807YKAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable (Fixed) | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 1.8V | Voltage - Input (Max): | 5.5V |
| Voltage - Output (Min/Fixed): | 0.8V (1.2V) | Voltage - Output (Max): | 1.55V |
| Current - Output: | 600mA | Frequency - Switching: | 1.5MHz |
| High Light: | Positive Switching Regulator IC,Adjustable Switching Regulator IC,TPS62807YKAR Switching Regulator IC |
||
Product Description
TPS62807YKAR Switching Regulator IC Positive Adjustable 0.8V (1.2V) 1 Output 600mA
Specifications of TPS62807YKAR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V (1.2V) |
| Voltage - Output (Max) | 1.55V |
| Current - Output | 600mA |
| Frequency - Switching | 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

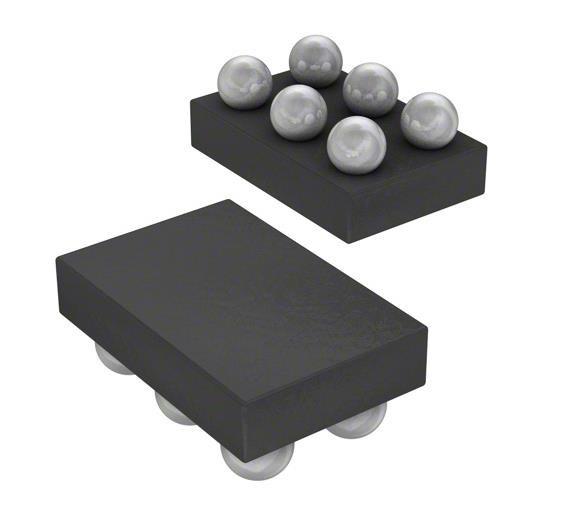

| Package / Case | 6-XFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA (1.05x0.70) |
| Base Product Number | TPS62807 |
Features of TPS62807YKAR
• 1.75-V to 5.5-V input voltage range
• 2.3-µA operating quiescent current
• Up to 4-MHz switching frequency
• 0.6-A or 1-A output current
• 1% output voltage accuracy
• Selectable power save and forced PWM mode
• R2D converter for flexible VOUT setting
• 16 selectable and one fixed output voltages
– TPS62800 (4 MHz): 0.4 V to 0.775 V
– TPS62801 (4 MHz): 0.8 V to 1.55 V
– TPS62802 (4 MHz): 1.8 V to 3.3 V
– TPS62806 (1.5 MHz): 0.4 V to 0.775 V
– TPS62807 (1.5 MHz): 0.8 V to 1.55 V
– TPS62808 (1.5 MHz): 1.8 V to 3.3 V
• Smart enable pin
• Optimized pinout to support 0201 components
• DCS-Control topology
• Output discharge
• 100% duty cycle operation
• Tiny 6-pin, 0.35-mm pitch WCSP package
• Supports < 0.6-mm solution height
• Supports < 5-mm2 solution size
• Create a custom design using the:
– TPS62800 WEBENCH® Power Designer
– TPS62801 WEBENCH® Power Designer
– TPS62802 WEBENCH® Power Designer
– TPS62806 WEBENCH® Power Designer
– TPS62807 WEBENCH® Power Designer
– TPS62808 WEBENCH® Power Designer
