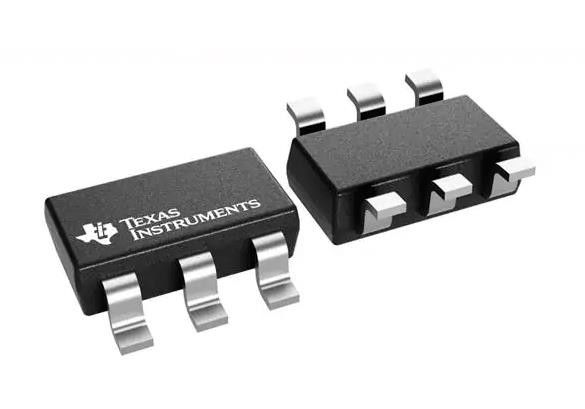

TPS565201DDCR Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 5A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS565201DDCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 17V |
| Voltage - Output (Min/Fixed): | 0.6V | Voltage - Output (Max): | 7V |
| Current - Output: | 5A | Frequency - Switching: | 500kHz |
| High Light: | TPS565201DDCR Switching Regulator IC,Positive Adjustable Switching Regulator IC,5A Switching Regulator IC |
||
Product Description
TPS565201DDCR Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 5A
Specifications of TPS565201DDCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | D-CAP2™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 7V |
| Current - Output | 5A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SOT-23-THIN |
| Base Product Number | TPS565201 |
Features of TPS565201DDCR
• 5-A Maximum Output Current
• Integrated 31-mΩ and 16-mΩ FETs
• D-CAP2™ Mode Control with Fast Transient Response
• Input Voltage Range: 4.5 V to 17 V
• Output Voltage Range: 0.76 V to 7 V
• High Efficiency at Light Loads with Pulse-skipping Eco-mode™
• 500-kHz Switching Frequency
• ≤1 µA Shutdown Current
• 1% Feedback Voltage Accuracy
• Startup from Pre-Biased Output Voltage
• Cycle-by-Cycle Current Limit
• Hiccup-mode Overcurrent Protection
• Non-Latch UVP, UVLO and TSD Protections
Application of TPS565201DDCR
• Digital TV Power Supply
• High Definition Blu-ray™ Disc Players
• Networking Home Terminal
• Digital Set Top Box (STB)
• Surveillance
Environmental & Export Classifications of TPS565201DDCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
