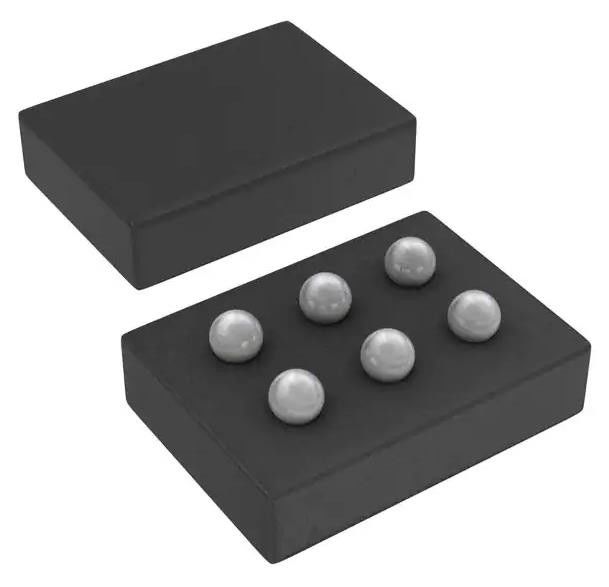

LMH2120UM/NOPB RF Detector IC W-CDMA 50MHz ~ 6GHz -35dBm ~ 5dBm ±0.5dB 6-XFBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMH2120UM/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Frequency: | 50MHz ~ 6GHz | RF Type: | CDMA, GSM, EDGE, W-CDMA |
|---|---|---|---|
| Input Range: | -35dBm ~ 5dBm | Accuracy: | ±0.5dB |
| Voltage - Supply: | 2.7V ~ 5V | Current - Supply: | 2.9 MA |
| Mounting Type: | Surface Mount | Package / Case: | 6-XFBGA, DSBGA |
Product Description
LMH2120UM/NOPB RF Detector IC W-CDMA 50MHz ~ 6GHz -35dBm ~ 5dBm ±0.5dB 6-XFBGA
Specifications of LMH2120UM/NOPB
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Detectors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Frequency | 50MHz ~ 6GHz |
| RF Type | CDMA, GSM, EDGE, W-CDMA |
| Input Range | -35dBm ~ 5dBm |
| Accuracy | ±0.5dB |
| Voltage - Supply | 2.7V ~ 5V |
| Current - Supply | 2.9 mA |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA (1.22x0.82) |
| Base Product Number | LMH2120 |
Features of LMH2120UM/NOPB
* Linear Root Mean Square Response
* 40 dB Linear-in-V Power Detection Range
* Multi-Band Operation from 50 MHz to 6 GHz
* Lin Conformance Better than +0.5 dB
* Highly Temperature Insensitive
* Modulation Independent Response
* Minimal Slope and Intercept Variation
* Shutdown Functionality
* Wide Supply Range from 2.7V to 5V
* Tiny 6-Bump DSBGA Package
Descriptions of LMH2120UM/NOPB
* Multi Mode, Multi Band RF Power Control
- GSM/EDGE
- CDMA/CDMA2000
- W-CDMA
- OFDMA
- LTE
* Infrastructure RF Power Control
Environmental & Export Classifications of LMH2120UM/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
