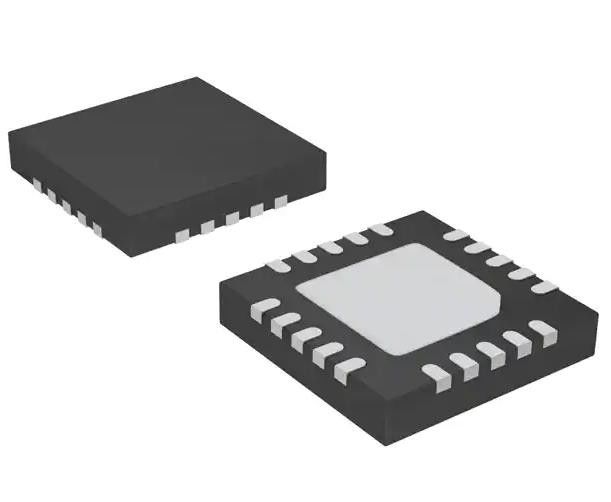

TPS53317RGBT Converter DDR Voltage Regulator IC 1 Output 20-VQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS53317RGBT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | Converter, DDR | Voltage - Input: | 1V ~ 6V |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Output: | 0.6V ~ 2V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
| High Light: | TPS53317RGBT,Converter Voltage Regulator IC,DDR Voltage Regulator IC |
||
Product Description
TPS53317RGBT D-CAP+™ Converter DDR Voltage Regulator IC 1 Output 20-VQFN
Specifications of TPS53317RGBT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Mfr | Texas Instruments |
| Series | D-CAP+™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Applications | Converter, DDR |
| Voltage - Input | 1V ~ 6V |
| Number of Outputs | 1 |
| Voltage - Output | 0.6V ~ 2V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4) |
| Base Product Number | TPS53317 |
Features of TPS53317RGBT
* Tl proprietary Integrated MOSFET and PackagingTechnology
* Supports DDR Memory Termination with up to 6-AContinuous Output Source or Sink Current
* External Tracking
* Minimum External Components Count
* 1-V to 6-V Conversion Voltage
* D-CAP+ TM Mode Architecture
* Supports All MLCC Output Capacitors andSP/POSCAP
* Selectable SKIP Mode or Forced CCM
* Optimized Efficiency at Light and Heavy Loads
* Selectable 600-kHz or 1-MHz SwitchingFrequency
* Selectable Overcurrent Limit (OCL)
* Overvoltage, Over-Temperature and HiccupUndervoltage Protection
* Adjustable Output Voltage from 0.6 V to 2 V
* 3.5 mm x 4 mm, 20-Pin VQFN Package
Applications of TPS53317RGBT
• Memory Termination Regulator for DDR, DDR2,DDR3, DDR3L, and DDR4
• VTT Termination
• Low-Voltage Applications for 1-V to 6-V Input Rails
Environmental & Export Classifications of TPS53317RGBT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
