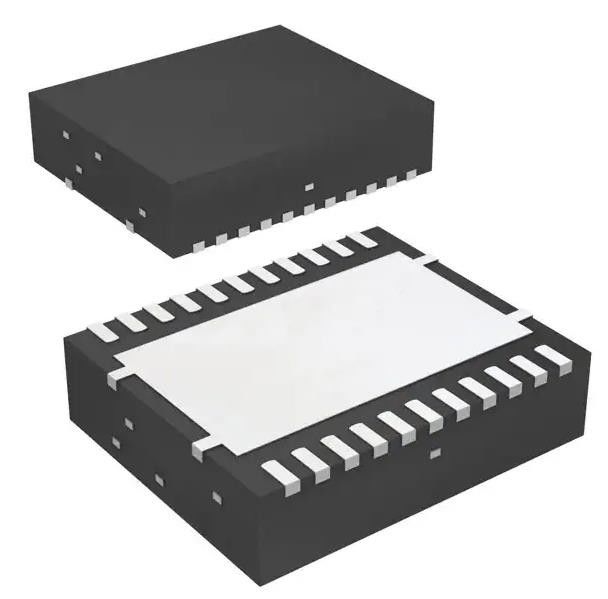

TPS56221DQPR Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 25A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS56221DQPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 14V |
| Voltage - Output (Min/Fixed): | 0.6V | Voltage - Output (Max): | 13.02V |
| Current - Output: | 25A | Frequency - Switching: | 300kHz, 500kHz, 950kHz |
| High Light: | TPS56221DQPR,TPS56221DQPR Buck Switching Regulator IC,Positive Adjustable Buck Switching Regulator IC |
||
Product Description
TPS56221DQPR Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 25A
Specifications of TPS56221DQPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 14V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 13.02V |
| Current - Output | 25A |
| Frequency - Switching | 300kHz, 500kHz, 950kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 22-PowerLFDFN |
| Supplier Device Package | 22-LSON-CLIP (6x5) |
| Base Product Number | TPS56221 |
Features of TPS56221DQPR
• 4.5-V to 14-V Input Voltage Range
• Incorporates Power Block Technology
• Up to 25-A Output Current
• Fixed-Frequency Options of 300 kHz, 500 kHz,and 1 MHz
• High-Side and Low-Side MOSFET RDS(on) Sensing
• Programmable Soft-Start
• 600-mV Reference Voltage With 1% Accuracy
• Voltage Mode Control with Feed-Forward
• Supports Prebiased Output
• Thermal Shutdown
• 22-Pin 5-mm × 6-mm PQFN PowerPAD™ Package
Applications of TPS56221DQPR
• Point-of-Load (POL) Power Modules
• High-Density DC-DC Converters for Telecom and Networking Applications
Environmental & Export Classifications of TPS56221DQPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
