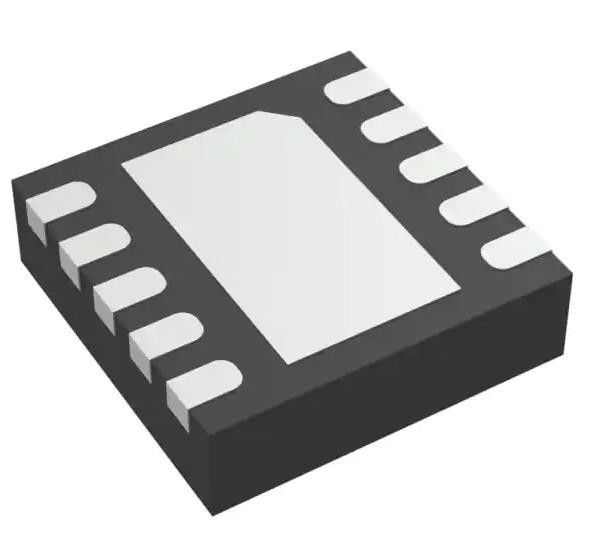

TPS62420DRCR Switching Regulator IC Positive Adjustable 0.6V 2 Output 600mA 1A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62420DRCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 2 |
|---|---|---|---|
| Voltage - Input (Min): | 2.5V | Voltage - Input (Max): | 6V |
| Voltage - Output (Min/Fixed): | 0.6V | Voltage - Output (Max): | 6V |
| Current - Output: | 600mA, 1A | Frequency - Switching: | 2.25MHz |
| High Light: | TPS62420DRCR,TPS62420DRCR Switching Regulator IC |
||
Product Description
TPS62420DRCR Switching Regulator IC Positive Adjustable 0.6V 2 Output 600mA 1A
Specifications of TPS62420DRCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 6V |
| Current - Output | 600mA, 1A |
| Frequency - Switching | 2.25MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | TPS62420 |
Features of TPS62420DRCR
* High Efficiency up to 95%
* ViN Range from 2.5 V to 6 V
* 2.25-MHz Fixed Frequency Operation
* Output Current 600 mA and 1000 mA
* Adjustable Output Voltage from 0.6 V to VN
* Pin Selectable Output Voltage Supports SimpleDynamic Voltage Scaling
* Optional EasyScalerw One-Pin Serial Interface forDynamic Output Voltage Adjustment
* Power-Save Mode at Light Load Currents
* 180° Out of Phase Operation
* Output Voltage Accuracy in PWM Mode :1%
* Typical 32-A Quiescent Current for bothConverters
* 100% Duty Cycle for Lowest Dropout
* Available in a 10-Pin VSON (3 mm x 3 mm)
Applications of TPS62420DRCR
* Cell Phones, Smart-phones
* PDAs, Pocket PCs
* OMAPTM and Low Power DSP Supply
* Portable Media Players
* Digital Radios
* Digital Cameras
Environmental & Export Classifications of TPS62420DRCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
