TPS54331DR Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS54331DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Step-Down | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 3.5V | Voltage - Input (Max): | 28V |
| Voltage - Output (Min/Fixed): | 0.8V | Voltage - Output (Max): | 25V |
| High Light: | TPS54331DR,TPS54331DR Buck Switching Regulator IC |
||
Product Description

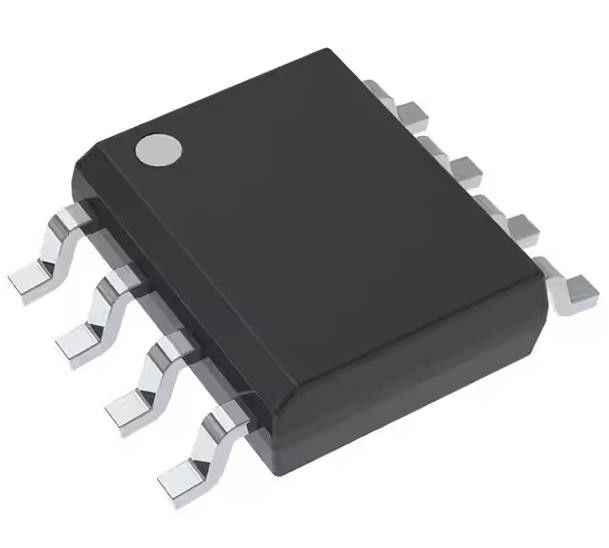

TPS54331DR Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-SOIC
Specifications of TPS54331DR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 25V |
| Current - Output | 3A |
| Frequency - Switching | 570kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TPS54331 |
Features of TPS54331DR
• 3.5 to 28-V input voltage range
• Adjustable output voltage down to 0.8 V
• Integrated 80-mΩ high-side MOSFET supports up to 3-A continuous output current
• High efficiency at light loads with a pulse skipping Eco-mode
• Fixed 570-kHz switching frequency
• Typical 1-μA shutdown quiescent current
• Adjustable slow-start limits inrush currents
• Programmable UVLO threshold
• Overvoltage transient protection
• Cycle-by-cycle current limit, frequency foldback, and thermal shutdown protection
• Available in easy-to-use SOIC8 package or thermally-enhanced SOIC8 PowerPAD™ package
• Create a custom design using the TPS54331 with the WEBENCH® Power Designer
Applications of TPS54331DR
• Consumer applications such as set-top boxes,CPE equipment, LCD displays, peripherals, and battery chargers
• Industrial and car-audio power supplies
• 5-V, 12-V, and 24-V distributed power systems
Environmental & Export Classifications of TPS54331DR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
