TPS54610PWPR Buck Switching Regulator IC Positive Adjustable 0.891V 1 Output 6A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS54610PWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Topology: | Buck | Output Type: | Adjustable |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Input (Min): | 6V |
| Voltage - Output (Min/Fixed): | 0.891V | Voltage - Output (Max): | 5.4V |
| Current - Output: | 6A | ||
| High Light: | TPS54610PWPR,TPS54610PWPR Buck Switching Regulator IC |
||
Product Description
TPS54610PWPR Buck Switching Regulator IC Positive Adjustable 0.891V 1 Output 6A
Specifications of TPS54610PWPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SWIFT™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.891V |
| Voltage - Output (Max) | 5.4V |
| Current - Output | 6A |
| Frequency - Switching | 350kHz, 550kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

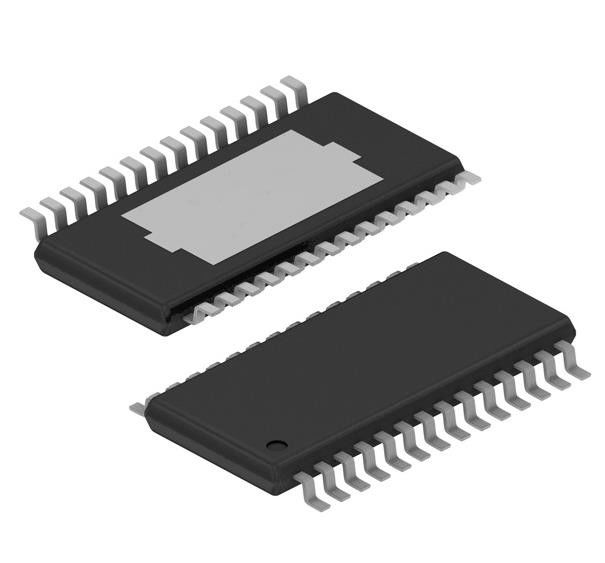

| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP |
| Base Product Number | TPS54610 |
Features of TPS54610PWPR
• 30-mΩ, 12-A Peak MOSFET Switches for High Efficiency at 6-A Continuous Output Source or Sink Current
• Adjustable Output Voltage Down to 0.9 V With 1.0% Accuracy
• Wide PWM Frequency: Fixed 350 kHz, 550 kHz or Adjustable 280 kHz to 700 kHz
• Synchronizable to 700 kHz
• Load Protected by Peak Current Limit and Thermal Shutdown
• Integrated Solution Reduces Board Area and Component Count
Applications of TPS54610PWPR
• Low-Voltage, High-Density Distributed Power Systems
• Point of Load Regulation for High Performance DSPs, FPGAs, and Microprocessors
• Broadband, Networking and Optical Communications Infrastructure
• Portable Computing/Notebook PCs
Environmental & Export Classifications of TPS54610PWPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
