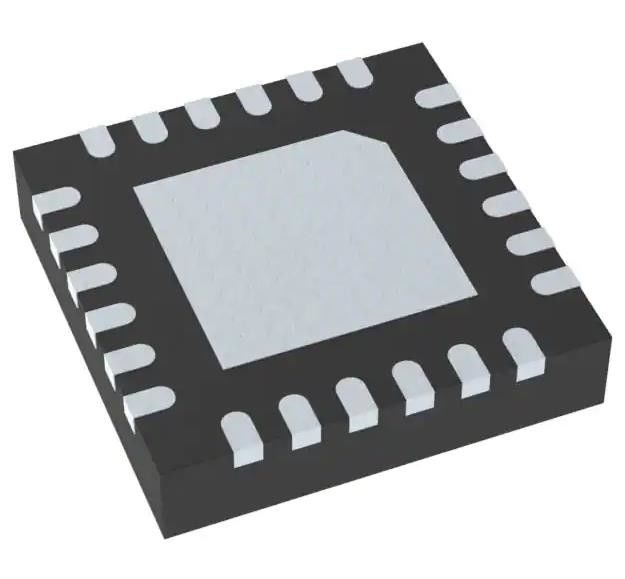

TPS65145RGER PMIC Integrated Circuits 24-VQFN (4x4) For LCD Monitor / Notebook / Display
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS65145RGER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | LCD Monitor, Notebook Display | Current - Supply: | 700µA |
|---|---|---|---|
| Voltage - Supply: | 2.7V ~ 5.8V | Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount | Package / Case: | 24-VFQFN Exposed Pad |
| Supplier Device Package: | 24-VQFN (4x4) | Base Product Number: | TPS65145 |
| High Light: | TPS65145RGER,TPS65145RGER PMIC Integrated Circuits |
||
Product Description
TPS65145RGER LCD Monitor Notebook Display PMIC 24-VQFN (4x4)
Specifications of TPS65145RGER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Management - Specialized | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Applications | LCD Monitor, Notebook Display |
| Current - Supply | 700µA |
| Voltage - Supply | 2.7V ~ 5.8V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Base Product Number | TPS65145 |
Features of TPS65145RGER
• 2.7-V to 5.8-V Input Voltage Range
• 1.6-MHz Fixed Switching Frequency
• 3 Independent Adjustable Outputs
• Main Output up to 15 V With <1% Typical Output Voltage Accuracy
• Virtual Synchronous Converter Technology
• Negative Regulated Charge Pump Driver VO2
• Positive Charge Pump Converter VO3
• Auxiliary 3.3-V Linear Regulator Controller
• Internal Soft Start
• Internal Power-On Sequencing
• Fault Detection of All Outputs (TPS65140 and TPS65145)
• No Fault Detection (TPS65141)
• Thermal Shutdown
• System Power Good
• Available in 24-Pin HTSSOP and 24-Pin VQFN PowerPAD™ Packages
Applications of TPS65145RGER
• TFT LCD Displays for Notebooks
• TFT LCD Displays for Monitors
• Portable DVD Players
• Tablet PCs
• Car Navigation Systems
• Industrial Displays
Environmental & Export Classifications of TPS65145RGER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
