TPS60403DBVR Charge Pump Switching Regulator IC Positive 2Vin
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS60403DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 1.8V | Voltage - Input (Max): | 5.25V |
| Voltage - Output (Min/Fixed): | -Vin, 2Vin, Vin/2 | Current - Output: | 60mA |
| Frequency - Switching: | 250kHz | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | TPS60403DBVR,Charge Pump Switching Regulator IC,TPS60403DBVR Switching Regulator IC |
||
Product Description

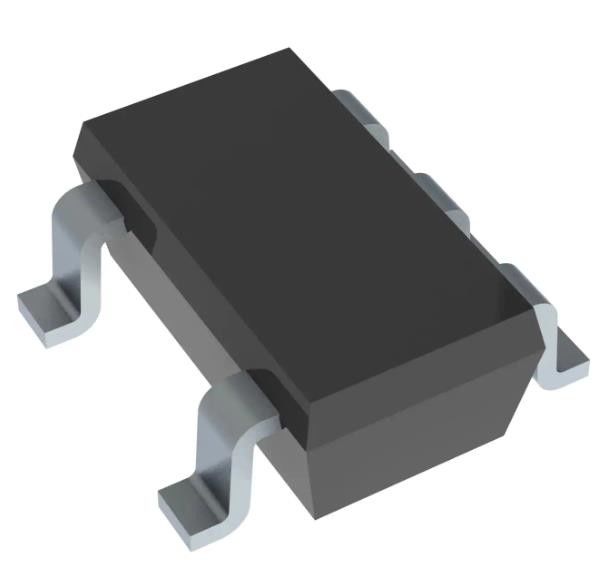

TPS60403DBVR Charge Pump Switching Regulator IC Positive 2Vin
Specifications of TPS60403DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin, Vin/2 |
| Voltage - Output (Max) | - |
| Current - Output | 60mA |
| Frequency - Switching | 250kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS60403 |
Features of TPS60403DBVR
• Inverts Input Supply Voltage
• Up to 60-mA Output Current
• Only Three Small 1-µF Ceramic Capacitors Needed
• Input Voltage Range From 1.6 V to 5.5 V
• PowerSave-Mode for Improved Efficiency at LowOutput Currents (TPS60400)
• Device Quiescent Current Typical 65 µA
• Integrated Active Schottky-Diode for Start-up Into Load
• Small 5-Pin SOT-23 Package
• Evaluation Module Available TPS60400EVM-178
Applications of TPS60403DBVR
• LCD Bias
• GaAs Bias for RF Power Amps
• Sensor Supply in Portable Instruments
• Bipolar Amplifier Supply
• Medical Instruments
• Battery-Operated Equipment
Environmental & Export Classifications of TPS60403DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
