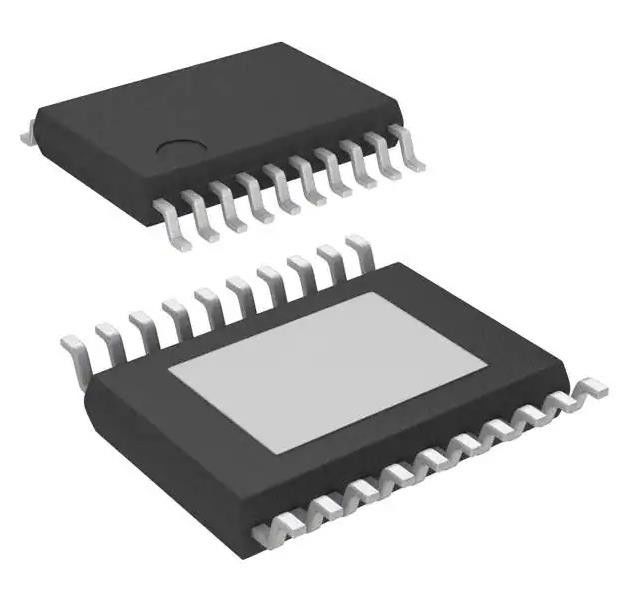

TPS56720PWPR Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 7A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS56720PWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable (Programmable) | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 17V | Voltage - Output (Min/Fixed): | 0.6V |
| Voltage - Output (Max): | 1.87V | Current - Output: | 7A |
| Frequency - Switching: | 500kHz | Synchronous Rectifier: | Yes |
| High Light: | TPS56720PWPR,TPS56720PWPR Buck Switching Regulator IC |
||
Product Description
TPS56720PWPR Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 7A
Specifications of TPS56720PWPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SWIFT™, D-CAP2™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Programmable) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 1.87V |
| Current - Output | 7A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| Base Product Number | TPS56720 |
Features of TPS56720PWPR
• D-CAP2™ Control
– Input Voltage Range: 4.5V to 17V
– Switching Frequency: 500kHz
– Optimized for a 1.0µH to 2.2µH Inductor
• ±1% Output Voltage Accuracy
• Features via I2C Compatible Interface
– Output Voltage (VID): 0.6V to 1.87V in 10mV
– Auto-Skip Eco-mode™ ON/OFF (Light-load)
– Current Limit Target: 40% to 160%
– Enabling IC, Reading-back Power-good
– Hiccup Mode Protection ON/OFF
• IC Terminal Features
– Start-up by Using External Resistors Output Voltage with VFB Pin: 0.6V to 1.87V
– Adjustable Soft-start,Monotonic Pre-Biased Start-up
– Power-good
– I2C Address Programming (2bits)
• Cycle-by-Cycle Overcurrent Limiting Control
• Thermal Shutdown (TSD)
• Undervoltage Lockout (UVLO)
• TSSOP Package (PWP) with PowerPAD™
Applications of TPS56720PWPR
• Media Processors for Consumer Applications: Digital TVs, Set Top Boxes (STB, DVD/Blu-ray Player, Cable/Satellite Modem)
• SoC Processors
• High Density Power Distribution Systems
Environmental & Export Classifications of TPS56720PWPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
