TPS62746YFPR Buck Switching Regulator IC Positive Programmable 1.2V, 1.8V 1
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62746YFPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Step-Down | Output Configuration: | Positive |
|---|---|---|---|
| Topology: | Buck | Output Type: | Programmable |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.15V |
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 1.2V, 1.8V |
| Current - Output: | 300mA | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | TPS62746YFPR,TPS62746YFPR Buck Switching Regulator IC |
||
Product Description
TPS62746YFPR Buck Switching Regulator IC Positive Programmable 1.2V, 1.8V 1
Specifications of TPS62746YFPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | DCS-Control™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Programmable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.15V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V, 1.8V |
| Voltage - Output (Max) | - |
| Current - Output | 300mA |
| Frequency - Switching | 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

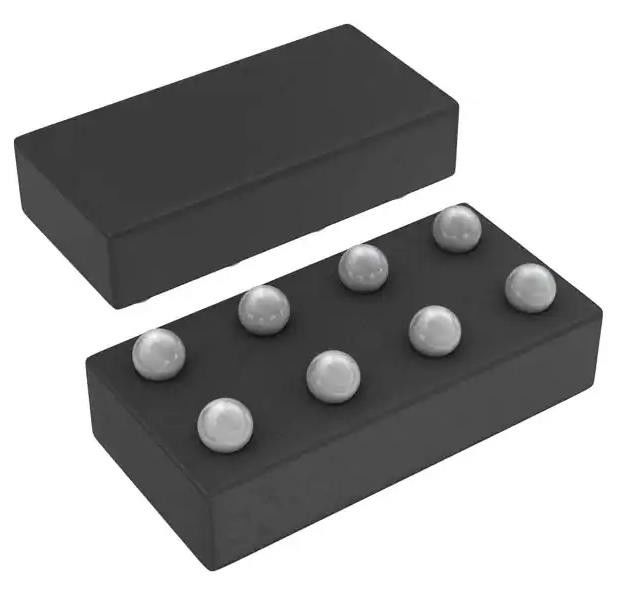

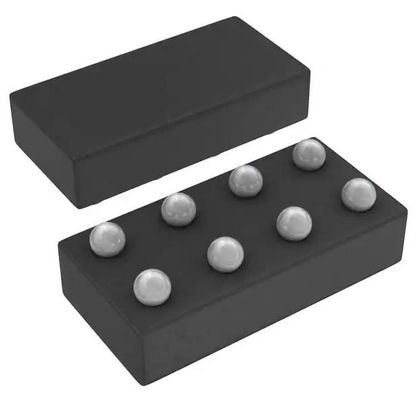

| Package / Case | 8-XFBGA, DSBGA |
| Supplier Device Package | 8-DSBGA |
| Base Product Number | TPS62746 |
Features of TPS62746YFPR
• Input voltage range VIN from 2.15 V to 5.5 V
• Input voltage range down to 2.0 V once started
• 300-mA output current
• 360-nA operational quiescent current
• Up to 90% efficiency at 10-µA output current
• Power save mode operation
• Selectable output voltages
– 1.2 V and 1.8 V
• Output voltage discharge
• 1-mA /150-Ω integrated input voltage switch
• Low output voltage ripple
• Automatic transition to no ripple 100% mode
• RF friendly DCS-Control™
• Total solution size < 10 mm2
• Small 1.6-mm × 0.9-mm, 8-ball WCSP package
Applications of TPS62746YFPR
• Wearables
• Fitness tracker
• Smartwatch
• Health monitoring
• Bluetooth® low energy, RF4CE, Zigbee
• High-efficiency, ultra-low power applications
• Energy harvesting
Environmental & Export Classifications of TPS62746YFPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
