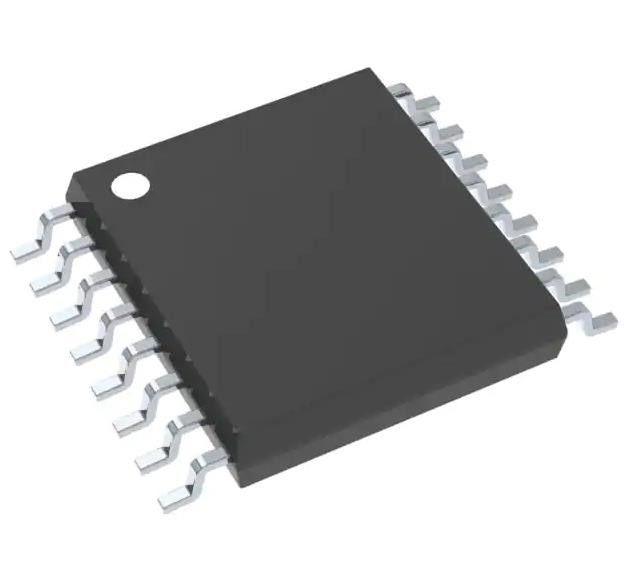

TS3A44159PWR 4 Circuit Switching Regulator IC 2:1 450mOhm 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TS3A44159PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Multiplexer/Demultiplexer Circuit: | 2:01 | Number Of Circuits: | 4 |
|---|---|---|---|
| On-State Resistance (Max): | 450mOhm | Channel-to-Channel Matching (ΔRon): | 50mOhm |
| Voltage - Supply, Single (V+): | 1.65V ~ 4.3V | Switch Time (Ton, Toff) (Max): | 23ns, 32ns |
| -3db Bandwidth: | 35MHz | Charge Injection: | 139pC |
| Channel Capacitance (CS(off), CD(off)): | 50pF | Current - Leakage (IS(off)) (Max): | 20nA |
| High Light: | TS3A44159PWR,TS3A44159PWR Switching Regulator IC,4 Circuit Switching Regulator IC |
||
Product Description
TS3A44159PWR 4 Circuit Switching Regulator IC 2:1 450mOhm 16-TSSOP
Specifications of TS3A44159PWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:01 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 450mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 23ns, 32ns |
| -3db Bandwidth | 35MHz |
| Charge Injection | 139pC |
| Channel Capacitance (CS(off), CD(off)) | 50pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -73dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | TS3A44159 |
Features of TS3A44159PWR
* Specified Break-Before-Make Switching
* Low ON-State Resistance (<0.5 Q)
* Control Inputs Are 1.8-V Logic Compatible
* Low Charge Injection
* Excellent ON-State Resistance MatchingLow Total Harmonic Distortion (THD)
* 1.65-V to 4.3-V Single-Supply Operation
* Latch-Up Performance Exceeds 100 mAPer JESD 78, Class Il
* ESD Performance Tested Per JESD 22+
- 2000-V Human-Body Model(A114-B,Class Il)
- +1000-V Charged-Device Model (C101)
Introduction of TS3A44159PWR
* Cell Phones
* PDAs
* Portable Instrumentation
* Audio and Video Signal Routing
* Low-Voltage Data-Acquisition Systems
* Communication Circuits
* Modems
* Hard Drives
* Computer Peripherals
* Wireless Pins and Peripherals
Environmental & Export Classifications of TS3A44159PWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
