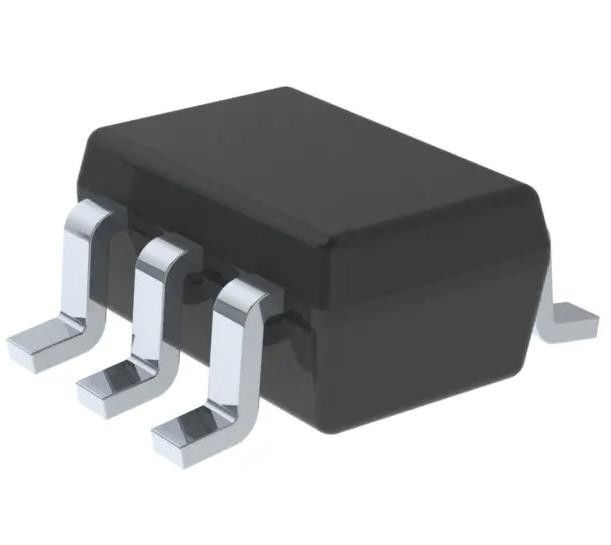

TS5A3159DCKR 1 Circuit Switching Regulator IC 2:1 1.1Ohm SC-70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TS5A3159DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Switch Circuit: | SPDT | Multiplexer/Demultiplexer Circuit: | 2:01 |
|---|---|---|---|
| Number Of Circuits: | 1 | On-State Resistance (Max): | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon): | 100mOhm | Voltage - Supply, Single (V+): | 1.65V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 35ns, 20ns | -3db Bandwidth: | 100MHz |
| High Light: | TS5A3159DCKR,TS5A3159DCKR Switching Regulator IC,1 Circuit Switching Regulator IC |
||
Product Description
TS5A3159DCKR 1 Circuit IC Switching Regulator 2:1 1.1Ohm SC-70-6
Specifications of TS5A3159DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 20ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 36pC |
| Channel Capacitance (CS(off), CD(off)) | 23pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -65dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | TS5A3159 |
Features of TS5A3159DCKR
* Specified Break-Before-Make SwitchingLow ON-State Resistance (1 Q)
* Control Inputs are 5-V Tolerant
* Low Charge Injection
* Excellent ON-Resistance Matching
* Low Total Harmonic Distortion
* 1.65-V to 5.5-V Single-Supply Operation
* Latch-Up Performance Exceeds 100 mAPer JESD 78, Class Il
* ESD Performance Tested Per JESD
- 222000-V Human-Body Model(A114-B, Class Il)
- 1000-V Charged-Device Model (C101)
Introduction of TS5A3159DCKR
• Mobile Phones
• Consumer and Computing
• Portable Instrumentation
Environmental & Export Classifications of TS5A3159DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
