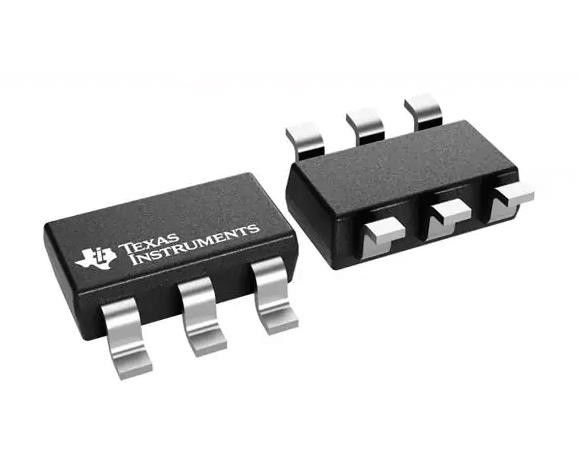

LM2734XQMKX/NOPB Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2734XQMKX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 3V | Voltage - Input (Max): | 20V |
| Voltage - Output (Min/Fixed): | 0.8V | Voltage - Output (Max): | 18V |
| Current - Output: | 1A | Frequency - Switching: | 1.6MHz |
| High Light: | LM2734XQMKX/NOPB,LM2734XQMKX/NOPB Buck Switching Regulator IC |
||
Product Description
LM2734XQMKX/NOPB Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A
Specifications of LM2734XQMKX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 18V |
| Current - Output | 1A |
| Frequency - Switching | 1.6MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SOT-23-THIN |
| Base Product Number | LM2734 |
Features of LM2734XQMKX/NOPB
• AEC-Q100 Qualified for Automotive Applications:
– Device Temperature Grade 1: -40°C to +125°C, TA
• Thin SOT-6 Package
• 3-V to 20-V Input Voltage Range
• 0.8-V to 18-V Output Voltage Range
• 1-A Output Current
• 550-kHz (LM2734Y) and 1.6-MHz (LM2734X) Switching Frequencies
• 300-mΩ NMOS Switch
• 30-nA Shutdown Current
• 0.8-V, 2% Internal Voltage Reference
• Internal Soft Start
• Current-Mode, PWM Operation
• Thermal Shutdown
• Create a Custom Design Using the LM2734-Q1 With WEBENCH® Power Designer
Introduction of LM2734XQMKX/NOPB
• Automotive
• Local Point-of-Load Regulation
• Advanced Driver Assistance Systems (ADAS)
Environmental & Export Classifications of LM2734XQMKX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
