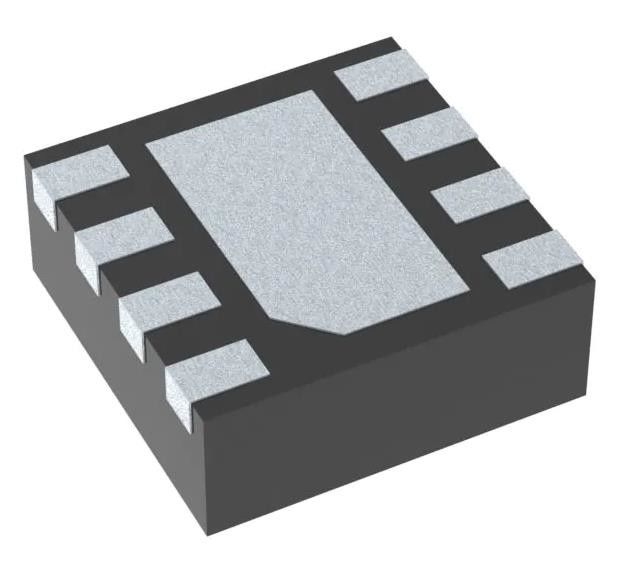

TLV62080DSGR Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV62080DSGR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 2.5V | Voltage - Input (Max): | 5.5V |
| Voltage - Output (Min/Fixed): | 0.5V | Voltage - Output (Max): | 4V |
| Current - Output: | 1.2A | Frequency - Switching: | 2MHz |
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | TLV62080DSGR,TLV62080DSGR Buck Switching Regulator IC |
||
Product Description
TLV62080DSGR Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output
Specifications of TLV62080DSGR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | DCS-Control™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Voltage - Output (Max) | 4V |
| Current - Output | 1.2A |
| Frequency - Switching | 2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |
| Base Product Number | TLV62080 |
Features of TLV62080DSGR
• DCS-Control™ Architecture for Fast Transient Regulation
• 2.5 to 6-V Input Voltage Range (TLV62080)
• 2.7 to 6-V Input Voltage Range (TLV62084, TLV62084A)
• 100% Duty Cycle for Lowest Dropout
• Power Save Mode for Light Load Efficiency
• Output Discharge Function
• Power Good Output
• Thermal Shutdown
• Available in 2 mm × 2 mm 8-Terminal WSON Package
• For Improved Features Set, see the TPS62080
• Create a Custom Design Using the TLV6208x With the WEBENCH® Power Designer
Introduction of TLV62080DSGR
• Battery-Powered Portable Devices
• Point-of-Load Regulators
• PC, Notebook, Server
• Set Top Box
• Solid State Drive (SSD), Memory Supply
Environmental & Export Classifications of TLV62080DSGR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
