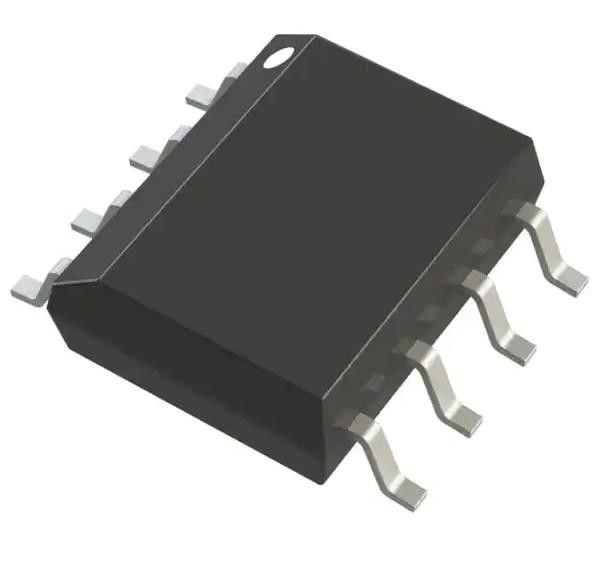

SSM2211SZ-REEL7 Amplifier IC 1-Channel (Mono) Class AB 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SSM2211SZ-REEL7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Differential Inputs, Shutdown | Output Type: | 1-Channel (Mono) |
|---|---|---|---|
| Max Output Power X Channels @ Load: | 1.5W X 1 @ 4Ohm | Voltage - Supply: | 2.7V ~ 5.5V |
| Mounting Type: | Surface Mount | Operating Temperature: | -40°C ~ 85°C (TA) |
| Supplier Device Package: | 8-SOIC | Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
Product Description
SSM2211SZ-REEL7 Amplifier IC 1-Channel (Mono) Class AB 8-SOIC
Specifications of SSM2211SZ-REEL7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 1.5W x 1 @ 4Ohm |
| Voltage - Supply | 2.7V ~ 5.5V |
| Features | Differential Inputs, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | SSM2211 |
Features of SSM2211SZ-REEL7
* 1.5 W outputwith THD + N < 1%
* Differential bridge-tied load output
* Single-supply operation: 2.7 V to 5.5 V
* Functions down to 1.75 V
* Wide bandwidth: 4 MHz
* Highly stable phase margin: >80°
* Low distortion: 0.2% THD + N at 1 W output
* Excellent power supply rejection
Applications of SSM2211SZ-REEL7
* Portable computers
* Personal wireless communicators
* Hands-free telephones
* Speaker phones
* Intercoms
* Musical toys and talking games
Environmental & Export Classifications of SSM2211SZ-REEL7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
