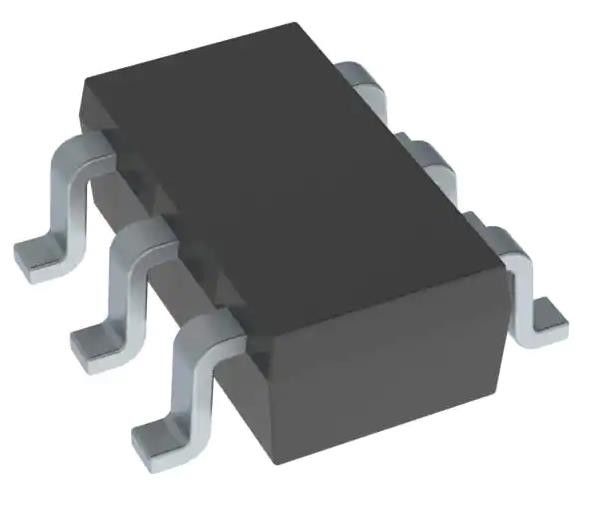

DG9421EDV-T1-GE3 1 Circuit Switching Regulator IC 1:1 3.2Ohm 6-TSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IRS2336DSTRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Switch Circuit: | SPST - NC | Multiplexer/Demultiplexer Circuit: | 1:01 |
|---|---|---|---|
| Number Of Circuits: | 1 | On-State Resistance (Max): | 3.2Ohm |
| Voltage - Supply, Single (V+): | 3V ~ 16V | Voltage - Supply, Dual (V±): | ±3V ~ 8V |
| Switch Time (Ton, Toff) (Max): | 36ns, 22ns | -3db Bandwidth: | 161MHz |
Product Description
DG9421EDV-T1-GE3 1 Circuit Switching Regulator IC 1:1 3.2Ohm 6-TSOP
Specifications of DG9421EDV-T1-GE3
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Vishay Siliconix |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 3.2Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 36ns, 22ns |
| -3db Bandwidth | 161MHz |
| Charge Injection | 19pC |
| Channel Capacitance (CS(off), CD(off)) | 34pF, 36pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
| Base Product Number | DG9421 |
Features of DG9421EDV-T1-GE3
• 3 V to 16 V single supply or ± 3 thru ± 8 V dual supply operation
• Low on resistance: 1.7 typical at 12 V
• 2.4 V logic compatible for control
• Bi-directional rail to rail signal switching
• Fast switching speed
• High bandwidth: 161 MHz
• Control logic input can be over V+
Applications of DG9421EDV-T1-GE3
• Automatic test equipment
• Data acquisition systems
• Meters and instruments
• Medical and healthcare systems
• Communication systems
• Audio and video signal routing
• Relay replacement
• Battery powered systems
• Computer peripherals
• Audio and video signal routing
