MC33163DWR2G Buck, Boost Switching Regulator IC Adjustable 1.25V 1 Output
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC33163DWR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.5V |
|---|---|---|---|
| Voltage - Input (Max): | 40V | Voltage - Output (Min/Fixed): | 1.25V |
| Voltage - Output (Max): | 40V (Switch) | Current - Output: | 3.4A (Switch) |
Product Description
MC33163DWR2G Buck, Boost Switching Regulator IC Adjustable 1.25V 1 Output
Specifications of MC33163DWR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Buck, Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 40V (Switch) |
| Current - Output | 3.4A (Switch) |
| Frequency - Switching | 50kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

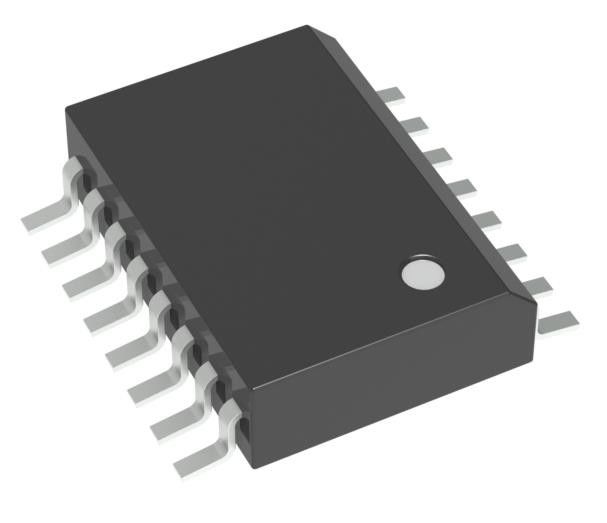

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | MC33163 |
Features of MC33163DWR2G
• Output Switch Current in Excess of 3.0 A
• Operation from 2.5 V to 40 V Input
• Low Standby Current
• Precision 2% Reference
• Controlled Duty Cycle Oscillator
• Driver with Bootstrap Capability for Increased Efficiency
• Cycle−by−Cycle Current Limiting
• Internal Thermal Shutdown Protection
• Low Voltage Indicator Output for Direct Microprocessor Interface
• Heat Tab Power Package
• Moisture Sensitivity Level (MSL) Equals 1
• Pb−Free Packages are Available*
Applications of MC33163DWR2G
The MC34163 series are monolithic power switching regulators that contain the primary functions required for dc−to−dc converters.
Environmental & Export Classifications of MC33163DWR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
