LT1964ES5-5#TRPBF Linear Voltage Regulator IC Negative Fixed 1 Output 200mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT1964ES5-5#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | -20V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | -5V | Voltage Dropout (Max): | 0.49V @ 200mA |
| Current - Output: | 200mA | PSRR: | 54dB (120Hz) |
| Control Features: | Enable | Protection Features: | Over Current, Over Temperature, Reverse Polarity |
Product Description
LT1964ES5-5#TRPBF Linear Voltage Regulator IC Negative Fixed 1 Output 200mA
Specifications of LT1964ES5-5#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Negative |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -20V |
| Voltage - Output (Min/Fixed) | -5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.49V @ 200mA |
| Current - Output | 200mA |
| PSRR | 54dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

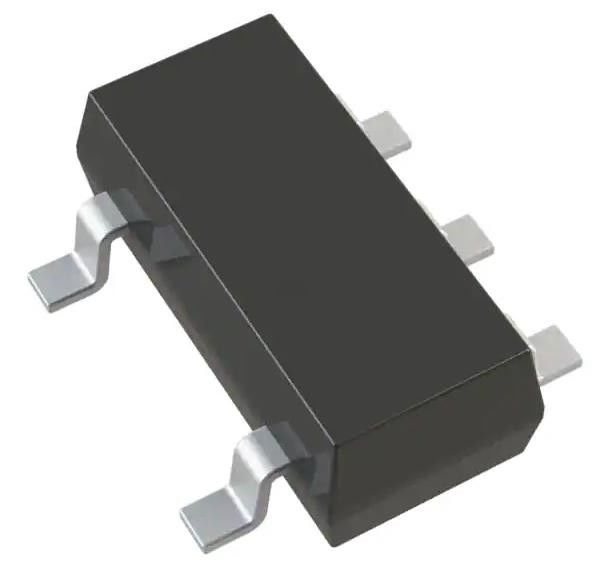

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | LT1964 |
Specifications of LT1964ES5-5#TRPBF
* Low Noise: 30μVRMS (10Hz to 100kHz)
* Low Quiescent Current: 30μA
* Low Dropout Voltage: 340mV
* Output Current: 200mA
* Fixed Output Voltage: –5V
* Adjustable Output from –1.22V to –20V
* Positive or Negative Shutdown Logic
* 3μA Quiescent Current in Shutdown
* Stable with 1μF Output Capacitor
* Stable with Aluminum, Tantalum, or Ceramic Capacitors
* Thermal Limiting
* Low Profi le (1mm) ThinSOT™ and (0.75mm) 8-Pin 3mm × 3mm DFN Packages
Applications of LT1964ES5-5#TRPBF
* Battery-Powered Instruments
* Low Noise Regulator for Noise-Sensitive Instrumentation
* Negative Complement to LT1761 Family of Positive LDOs
Environmental & Export Classifications of LT1964ES5-5#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
