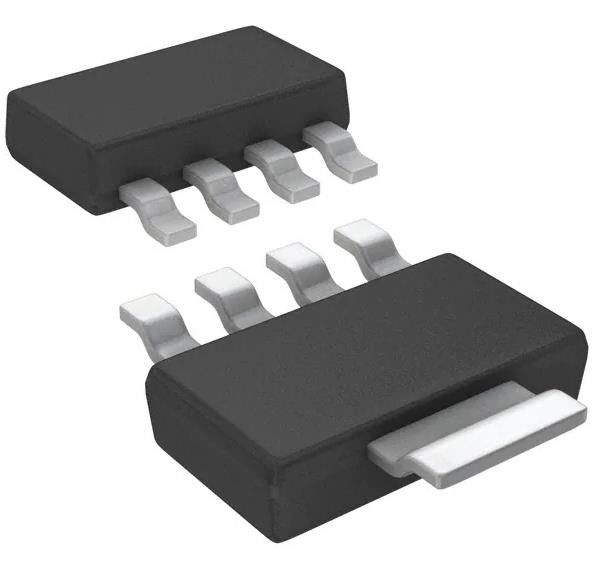

LP38692MP-3.3/NOPB Linear Voltage Regulator IC Positive Fixed 1 Output 1A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP2950CDTX-3.3/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 10V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 3.3V | Voltage Dropout (Max): | 1V @ 1A |
| Current - Output: | 1A | Current - Quiescent (Iq): | 55 µA |
| Current - Supply (Max): | 100 µA | PSRR: | 55dB (120Hz) |
Product Description
LP38692MP-3.3/NOPB Linear Voltage Regulator IC Positive Fixed 1 Output 1A
Specifications of LP38692MP-3.3/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 55dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-5, TO-261AB |
| Supplier Device Package | SOT-223-5 |
| Base Product Number | LP38692 |
Specifications of LP38692MP-3.3/NOPB
• Wide Input Voltage Range (2.7 V to 10 V)
• 2.5% Output Accuracy (25°C)
• Low Dropout Voltage: 450 mV at 1 A (typical, 5 VOUT)
• Precision (Trimmed) Bandgap Reference
• Ensured Specifications for –40°C to 125°C
• 1-µA Off-State Quiescent Current
• Thermal Overload Protection
• Foldback Current Limiting
• 3-Lead TO-252, 5-Lead SOT-223, and 6-Bump WSON Packages
• Enable Pin (LP38692)
• Ground Pin Current: 55 µA (typical) at Full Load
• Precision Output Voltage: 2.5% (25°C) Accuracy
Applications of LP38692MP-3.3/NOPB
• Hard Disk Drives
• Notebook Computers
• Battery Powered Devices
• Portable Instrumentation
Environmental & Export Classifications of LP38692MP-3.3/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
