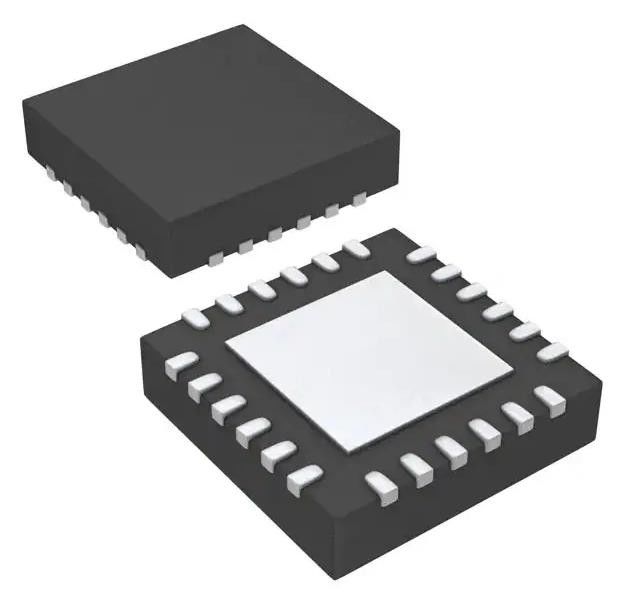

LNBH26SPQR Converter Satellite STB Receivers/SatTV Voltage Regulator IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LNBH26SPQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | Converter, Analog And Digital Satellite STB Receivers/SatTV | Voltage - Input: | 8V ~ 16V |
|---|---|---|---|
| Number Of Outputs: | 2 | Voltage - Output: | 13V, 18V |
| Operating Temperature: | 0°C ~ 85°C | Mounting Type: | Surface Mount |
| Package / Case: | 24-VFQFN Exposed Pad | Supplier Device Package: | 24-QFN (4x4) |
Product Description
LNBH26SPQR Converter Satellite STB Receivers/SatTV Voltage Regulator IC
Specifications of LNBH26SPQR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Applications | Converter, Analog and Digital Satellite STB Receivers/SatTV |
| Voltage - Input | 8V ~ 16V |
| Number of Outputs | 2 |
| Voltage - Output | 13V, 18V |
| Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
| Base Product Number | LNBH26 |
Specifications of LNBH26SPQR
• Complete interface between LNB and I²C bus
• Built-in DC-DC converter for single 12 V supply operation and high efficiency (typ. 93% @ 0.5 A)
• Selectable output current limit by external resistor
• Compliant with main satellite receiver output voltage specification (15 programmable levels)
• Accurate built-in 22 kHz tone generator suits widely accepted standards
• 22 kHz tone waveform integrity guaranteed at no-load condition as well
• Low drop post regulator and high efficiency step-up PWM with integrated power NMOS allowing low power losses
• LPM function (low power mode) to reduce dissipation
• Overload and overtemperature internal protection with I²C diagnostic bits
• LNB short-circuit dynamic protection
• +/- 4 kV ESD tolerant on output power pins
Applications of LNBH26SPQR
• STB satellite receivers
• TV satellite receivers
• PC card satellite receivers
Environmental & Export Classifications of LNBH26SPQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
