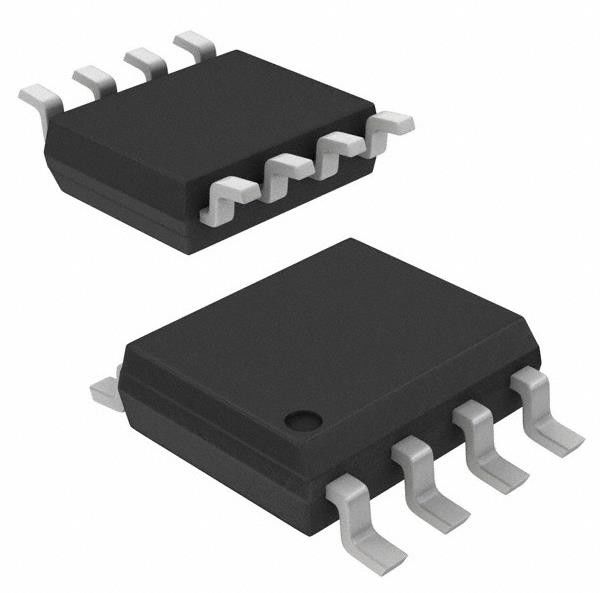

LMV358AM8X General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV358AM8X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 2 | Output Type: | Rail-to-Rail |
|---|---|---|---|
| Slew Rate: | 1.5V/µs | Gain Bandwidth Product: | 1.4 MHz |
| Current - Input Bias: | 1 NA | Voltage - Input Offset: | 1 MV |
| Current - Supply: | 100µA | Current - Output / Channel: | 34 MA |
Product Description
LMV358AM8X General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC
Specifications of LMV358AM8X
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.5V/µs |
| Gain Bandwidth Product | 1.4 MHz |
| Current - Input Bias | 1 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 100µA |
| Current - Output / Channel | 34 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LMV358 |
Specifications of LMV358AM8X
• 80 μA Supply Current per Channel
• 1.2 MHz Gain Bandwidth Product
• Output Voltage Range: 0.01 V to 2.69 V
• Input Voltage Range: -0.25 V to +1.5 V
• 1.5 V/ μs Slew Rate
• LMV321 Directly Replaces Other Industry Standard LMV321 Amplifiers: Available in SC70-5 and SOT23-5 Packages
• LMV358 Directly Replaces Other Industry Standard LMV358 Amplifiers: Available in MSOP-8 and SOIC-8 Packages
• LMV324 Directly Replaces Other Industry Standard LMV324 Amplifiers: Available in SOIC-14 Packages
• Fully Specified at +2.7 V and +5 V Supplies
• Operating Temperature Range: -40°C to +125°C
Applications of LMV358AM8X
• Low Cost General-Purpose Applications
• Cellular Phones
• Personal Data Assistants
• A/D Buffer
• DSP Interface
• Smart Card Readers
• Portable Test Instruments
• Keyless Entry
• Infrared Receivers for Remote Controls
• Telephone Systems
• Audio Applications
• Digital Still Cameras
• Hard Disk Drives
• MP3 Players
Environmental & Export Classifications of LMV358AM8X
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
