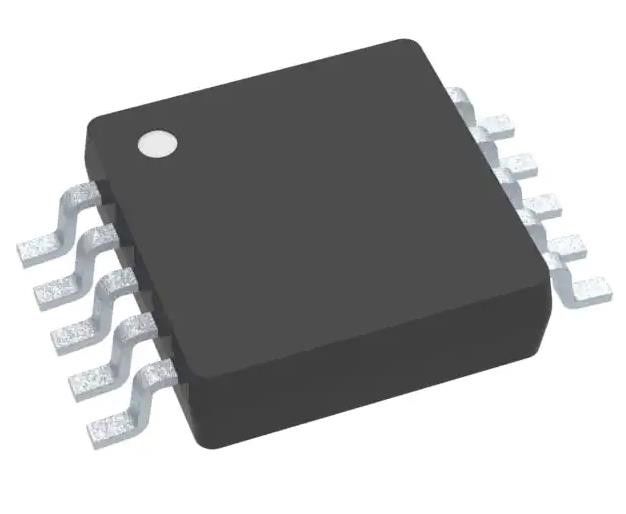

LM5022MM/NOPB Boost SEPIC Regulator Step-Up/Down DC-DC Controller IC 10-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5022MM/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Output Phases: | 1 |
|---|---|---|---|
| Voltage - Supply (Vcc/Vdd): | 6V ~ 60V | Frequency - Switching: | 200kHz ~ 990kHz |
| Duty Cycle (Max): | 95% | Synchronous Rectifier: | No |
| Clock Sync: | Yes | Control Features: | Frequency Control, Soft Start |
Product Description
LM5022MM/NOPB Boost SEPIC Regulator Step-Up/Down DC-DC Controller IC 10-VSSOP
Specifications of LM5022MM/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 60V |
| Frequency - Switching | 200kHz ~ 990kHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Base Product Number | LM5022 |
Specifications of LM5022MM/NOPB
• Internal 60-V start-up regulator
• 1-A Peak MOSFET gate driver
• VIN Range: 6 V to 60 V (operates down to 3 V after start-up)
• Duty cycle limit of 90%
• Programmable UVLO with hysteresis
• Cycle-by-cycle current limit
• External synchronizable (AC-coupled)
• Single resistor oscillator frequency set
• Slope compensation
• Adjustable soft start
• 10-Pin VSSOP package
Applications of LM5022MM/NOPB
• Boost converters
• SEPIC converters
Environmental & Export Classifications of LM5022MM/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
